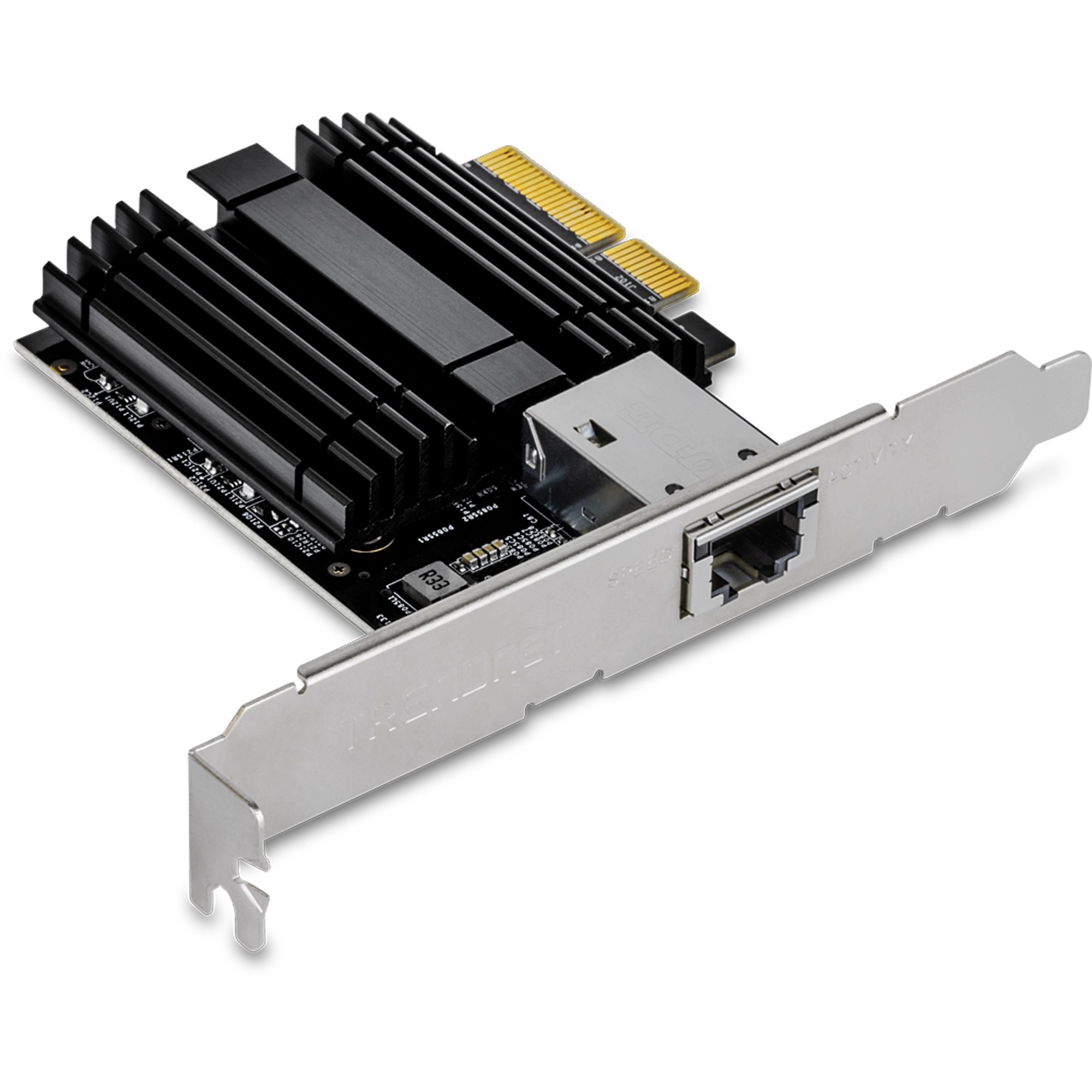

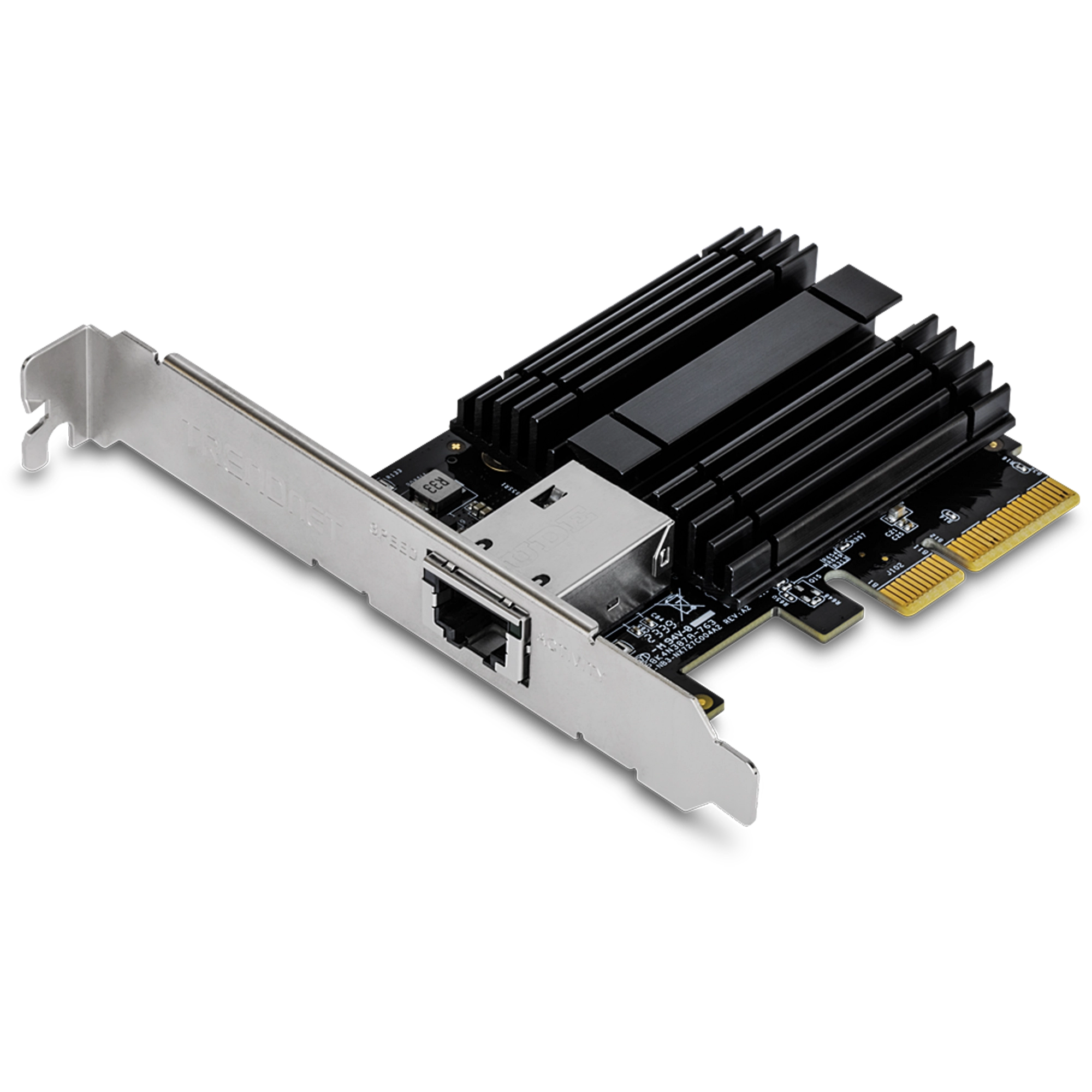

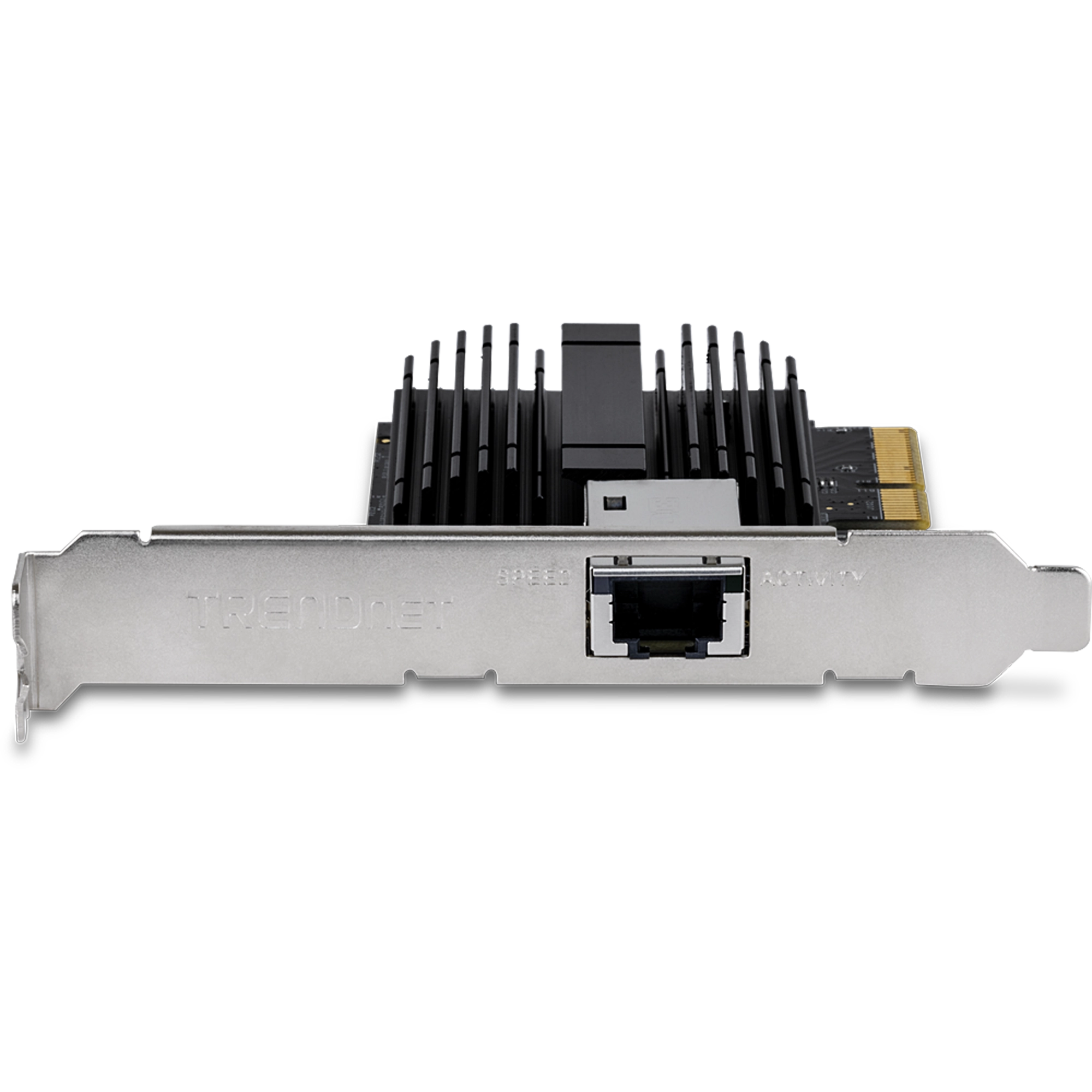

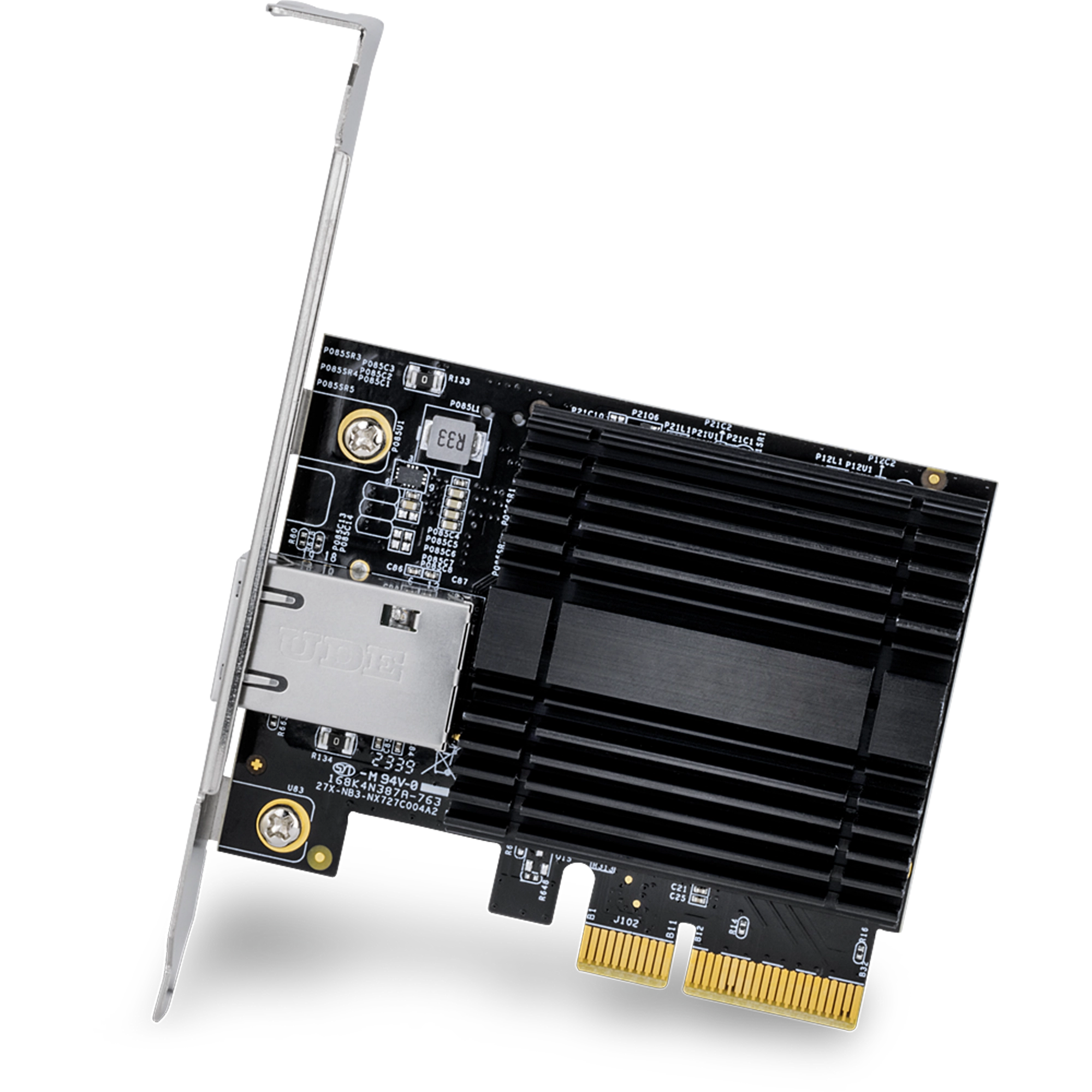

TRENDnet’s 10G PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port. The 10G PCIe card includes advanced features, such as jumbo frames and VLAN tagging support. The standard and low-profile brackets included with the 10G PCIe card are compatible with Windows® and Windows Server® desktop computer designs.
| Standards | - IEEE 802.3ab
- IEEE 802.3bz 2.5GBASE-T
- IEEE 802.3an 10GBASE-T
- IEEE 802.1Q
- IEEE 802.3ad
|
|---|
| Hardware Interface | - PCIe Gen 2 3.0 x4 interface
- 1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10Gbps / 2.5Gbps / 1Gbps )
- LED indicators
|
|---|
| Cable Requirements | - 10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A twisted pair @ 100m / 328 ft. (max.)
- 2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
- 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
|
|---|
| Compatibility | - Windows® 11, 10, 8.1
- Windows® Server 2022, 2019, 2016, 2012 R2
|
|---|
| Jumbo Frames | |
|---|
| Special Features | - 10GBASE-T (10Gbps) & 2.5G (2.5Gbps) support for high-speed network connectivity
- Windows Server support
|
|---|
| Additional Support | - 802.1Q VLAN Tagging
- Receive-side scaling (RSS)
- Message Signaled Interrupts (MSI)
- IP, TCP, and UDP checksum offloading
- Minimize overhead with reduced host bus traffic and CPU utilization
|
|---|
| Power | |
|---|
| Operating Temperature | - 0° – 70° C (32° – 158° F)
|
|---|
| Operating Humidity | |
|---|
| Certifications | |
|---|
| Dimensions | - 120 x 63 x 17mm (4.7 x 2.5 x 0.7 in.)
|
|---|
| Weight | |
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TEG-10GECTX
- Quick Installation Guide
- CD-ROM (Driver)
- Standard & low-profile brackets
|
