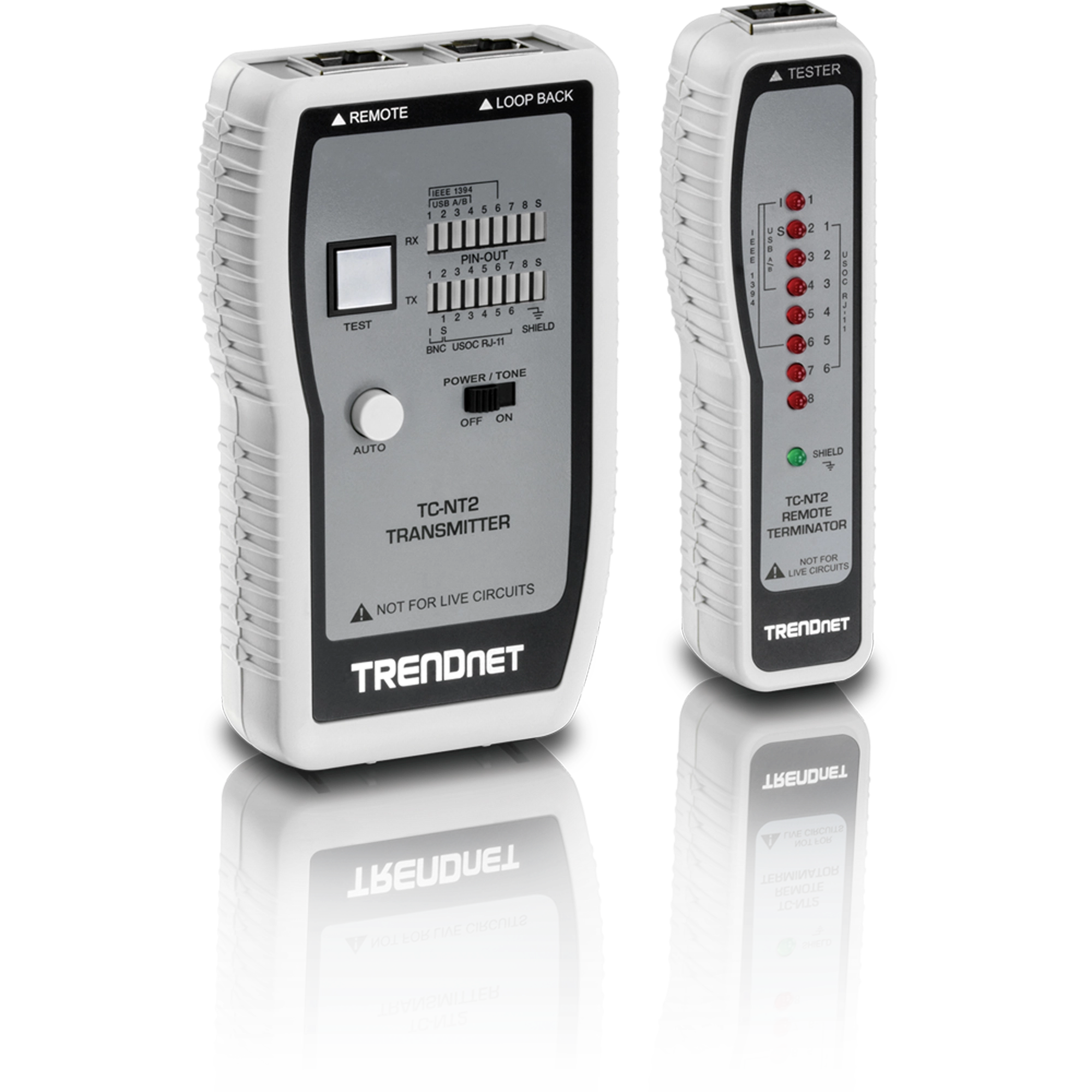

TRENDnet's Network Cable Tester, model TC-NT2, is a comprehensive cable tester for network professionals. It accurately checks pin configurations for Ethernet cables, USB cables, BNC cables, and patch panel ports. The TC-NT2 identifies proper, severed, short circuit, and cross connected pins for cable distances of up to 300 meters (984 ft.). All components fit into a handy travel case.
| Test Pin Configuration | - 10/100/1000 Base-T, 10 Base-2 (Coax)
- RJ-11/RJ-12/RJ-45
- EIA/TIA-356A/568A/568B
- Token ring cables
|
|---|
| Compatible Cables* | - Cat 7, 6, 6e, 6a, 5, 5e, 4, 3, 3e
- Coax cable
- USB and 1394 cable (with TC-NTUF)
|
|---|
| Transmitter Unit Interface | - 2 x test ports
- Manual test button
- Auto test button
- Power/tone switch
- LED indicators
|
|---|
| Receiver Unit Interface | |
|---|
| Tone Frequency | |
|---|
| Special Features | - Test grounding of shielded (screened) cable
- Identifies proper, severed, short circuit, and cross connected pins
- Build-in tone generator for tracing cable with standard Tone Probe (TC-TP1)
- Test USB and IEEE 1394 cables with optional adapters (TC-NTUF not included)
|
|---|
| Power Source | - Transmitter: 9 V DC battery (not included)
- Receiver: powered by master transmitter via connected cable
|
|---|
| Operating Temperature | |
|---|
| Operating Humidity | |
|---|
| Certifications | |
|---|
| Dimensions | - Transmitter: 117 x 67 x 27 mm (4.6 x 2.6 x 1.1 in.)
- Receiver: 117 x 32 x 27 mm (4.6 x 1.3 x 1.1 in.)
|
|---|
| Weight | - Transmitter: 108 g (3.8 oz.)
- Receiver: 44 g (1.6 oz.)
|
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TC-NT2
- Quick Installation Guide
- 2x RJ-45-to-BNC adapter
- Network patch cable
- Carry pouch
|
