TRENDnet TEG-MGBSX SFP Multi-Mode LC Module (550m)

In Stock (50 items)
৳3,300.00 ৳3,000.00

  • Transmission distance of up to 550m (1804 ft.)
  • Supports data rates of up to 1.25Gbps
  • Duplex LC optical interface
  • NDAA / TAA compliant
  • Origin USA, Made in Taiwan
Read more

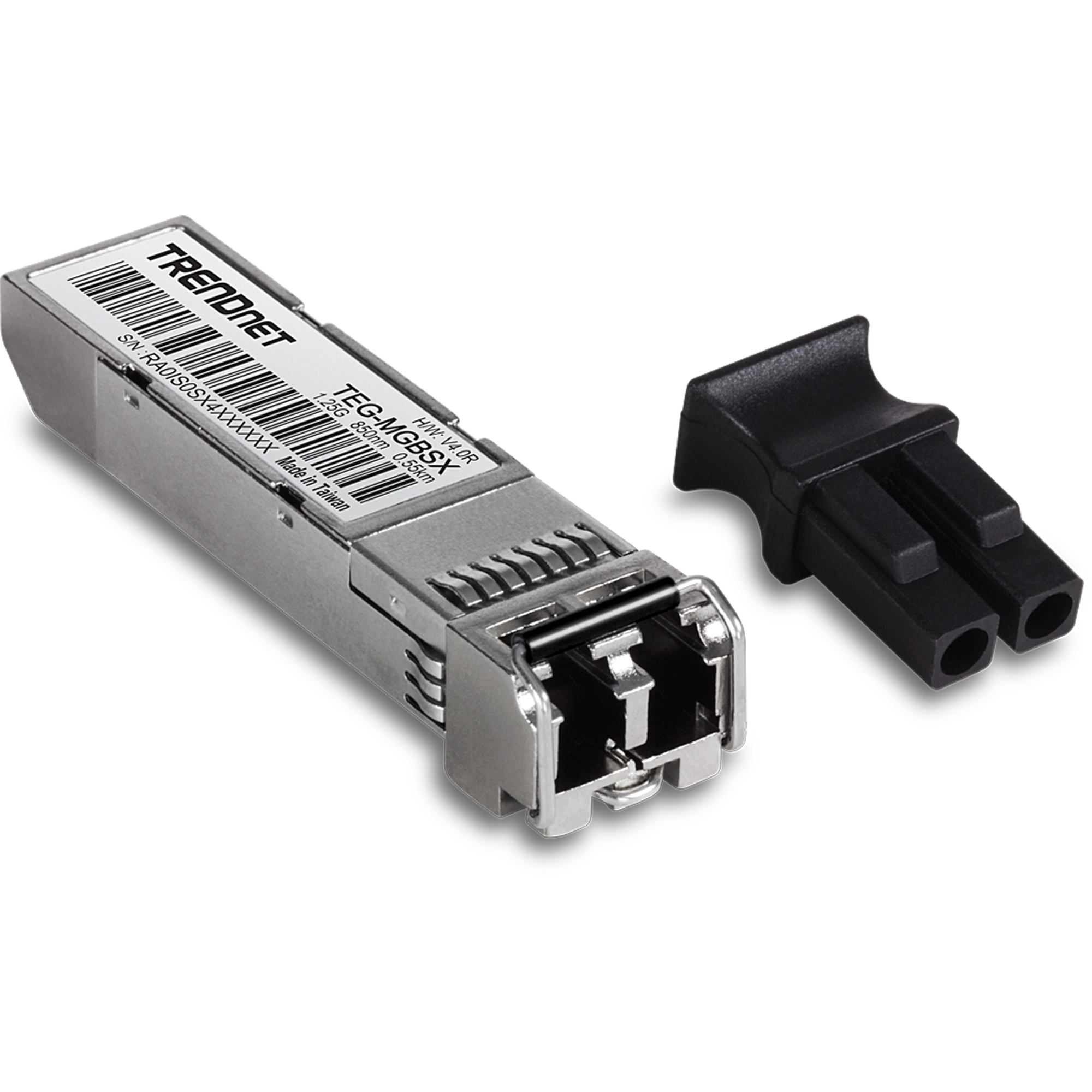

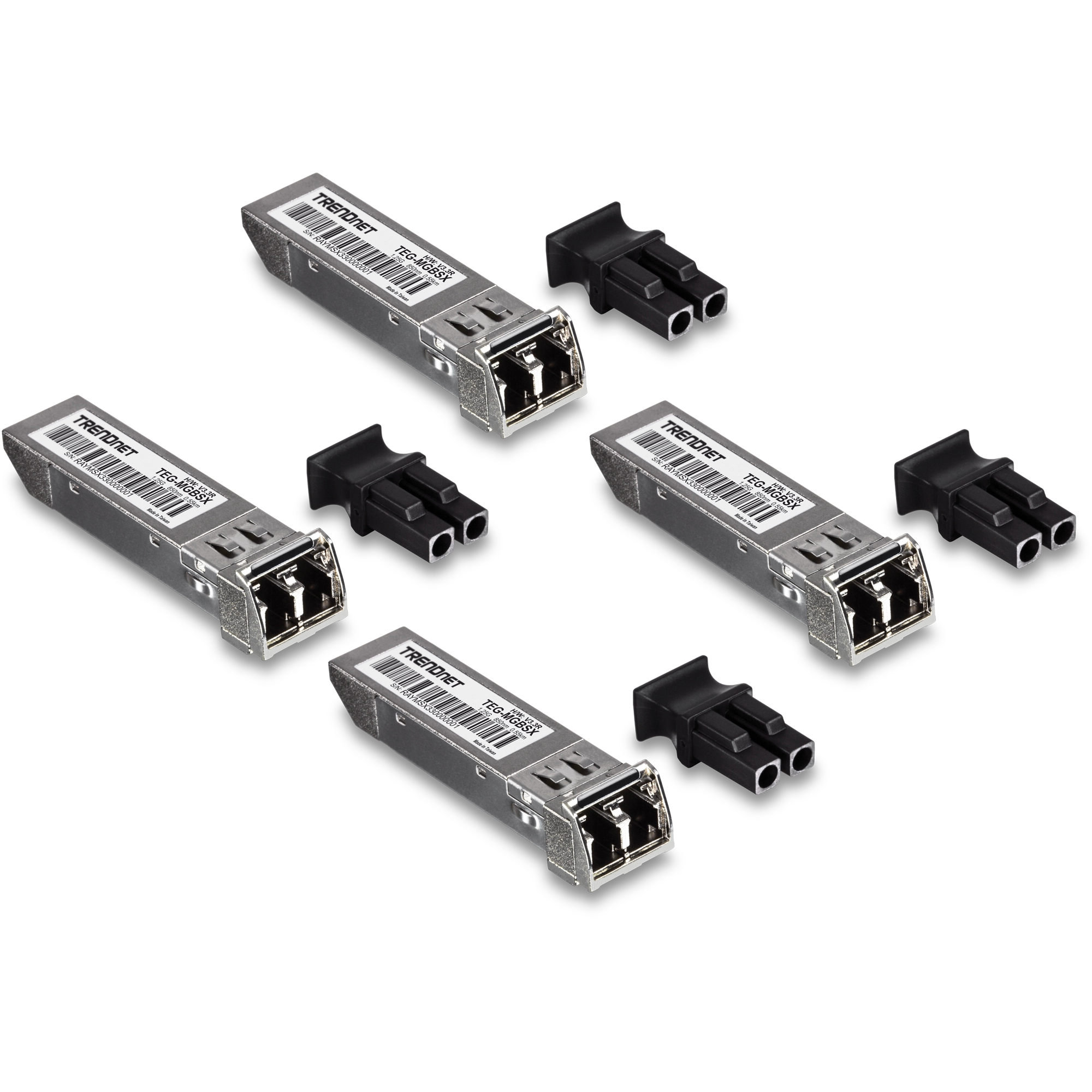

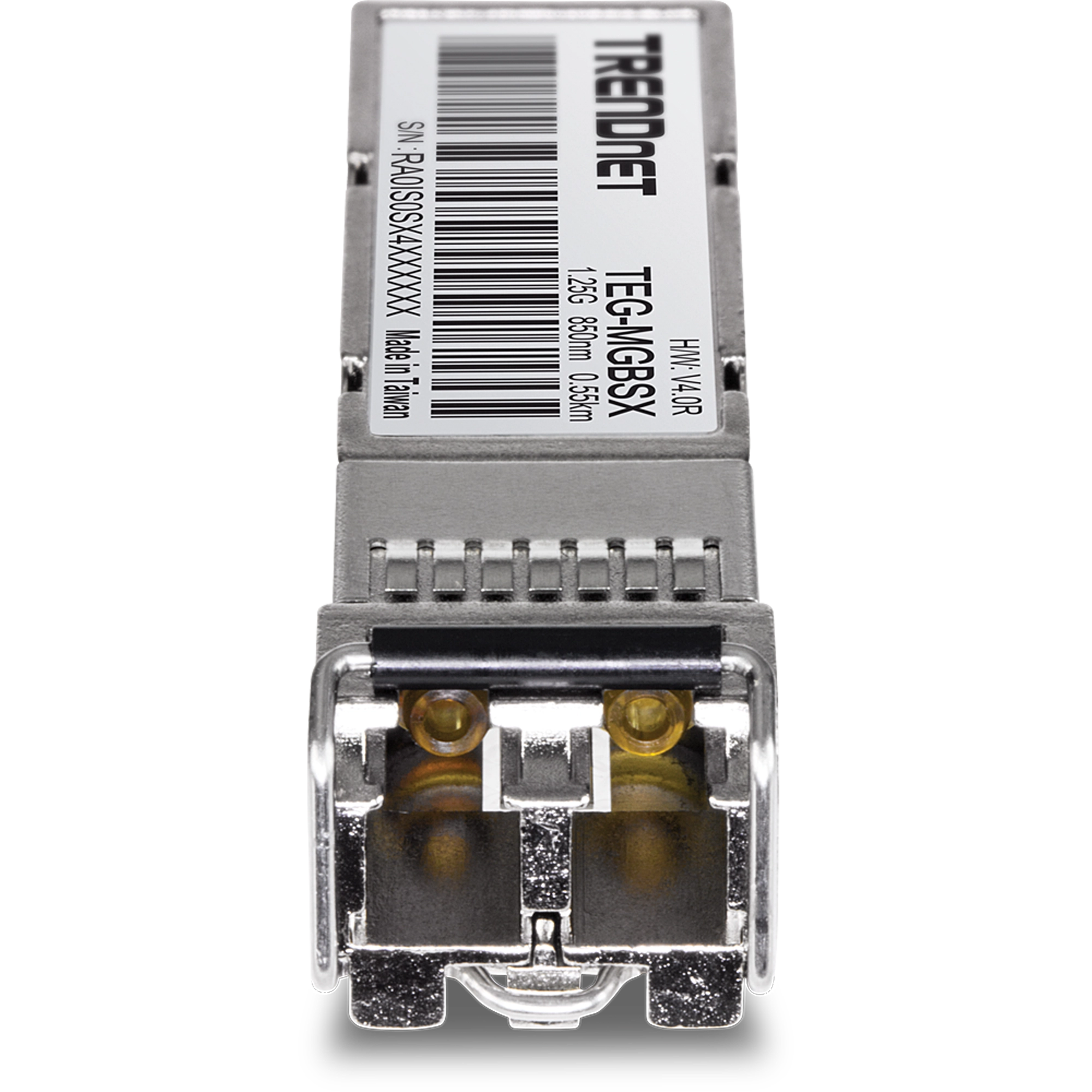

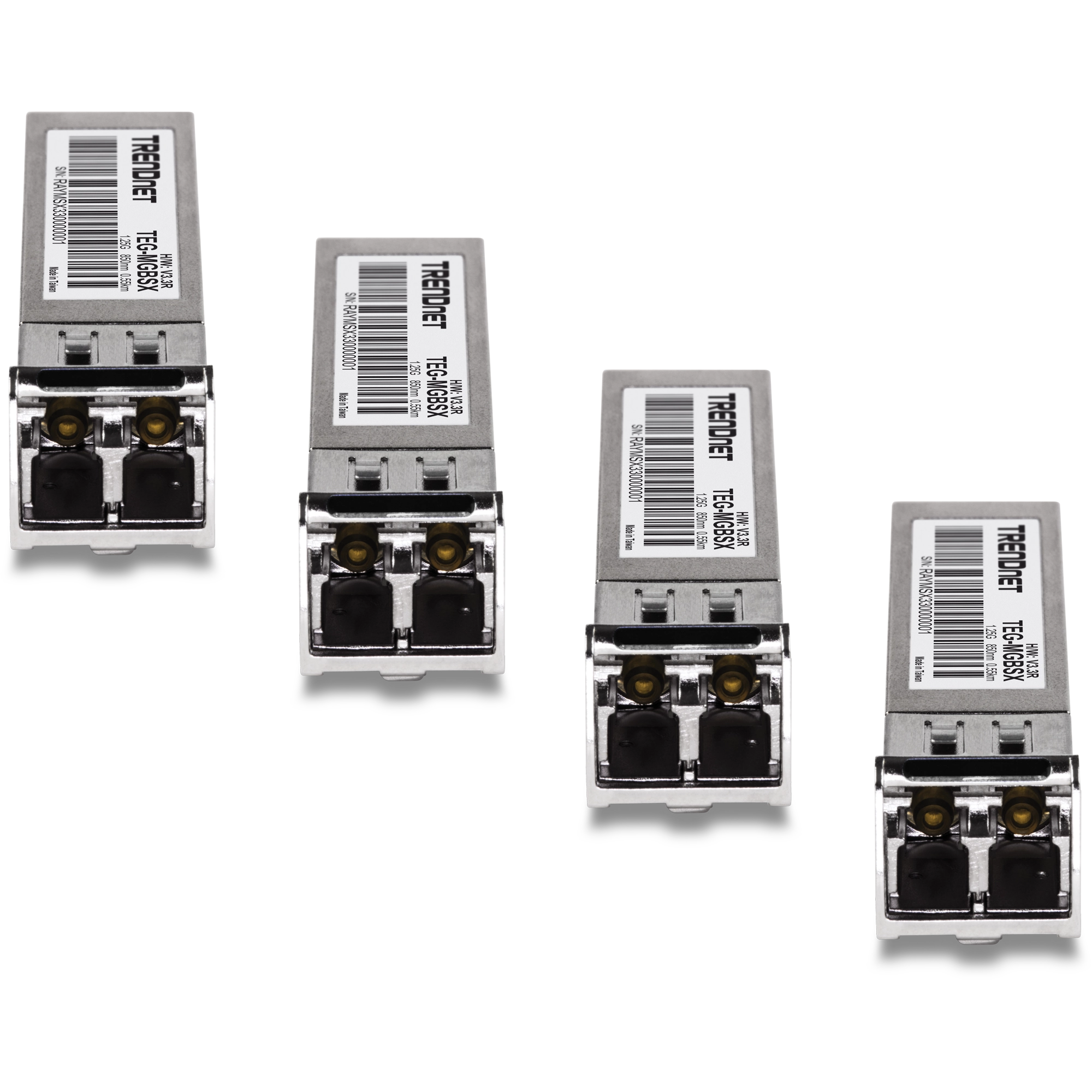

TRENDnet’s SFP Multi-Mode LC Module, model TEG-MGBSX, are compatible with standard SFP slots found on network switches and fiber media converters. The Multi-Mode SFP LC module is equipped with a duplex LC fiber connection interface, and supports gigabit multi-mode fiber connections for long distance networking applications.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC/UPC duplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • 850nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 550m (1804 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -20 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158 °F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions
  • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 1 year

PACKAGE CONTENTS

  • TEG-MGBSX
  • Quick Installation Guide
