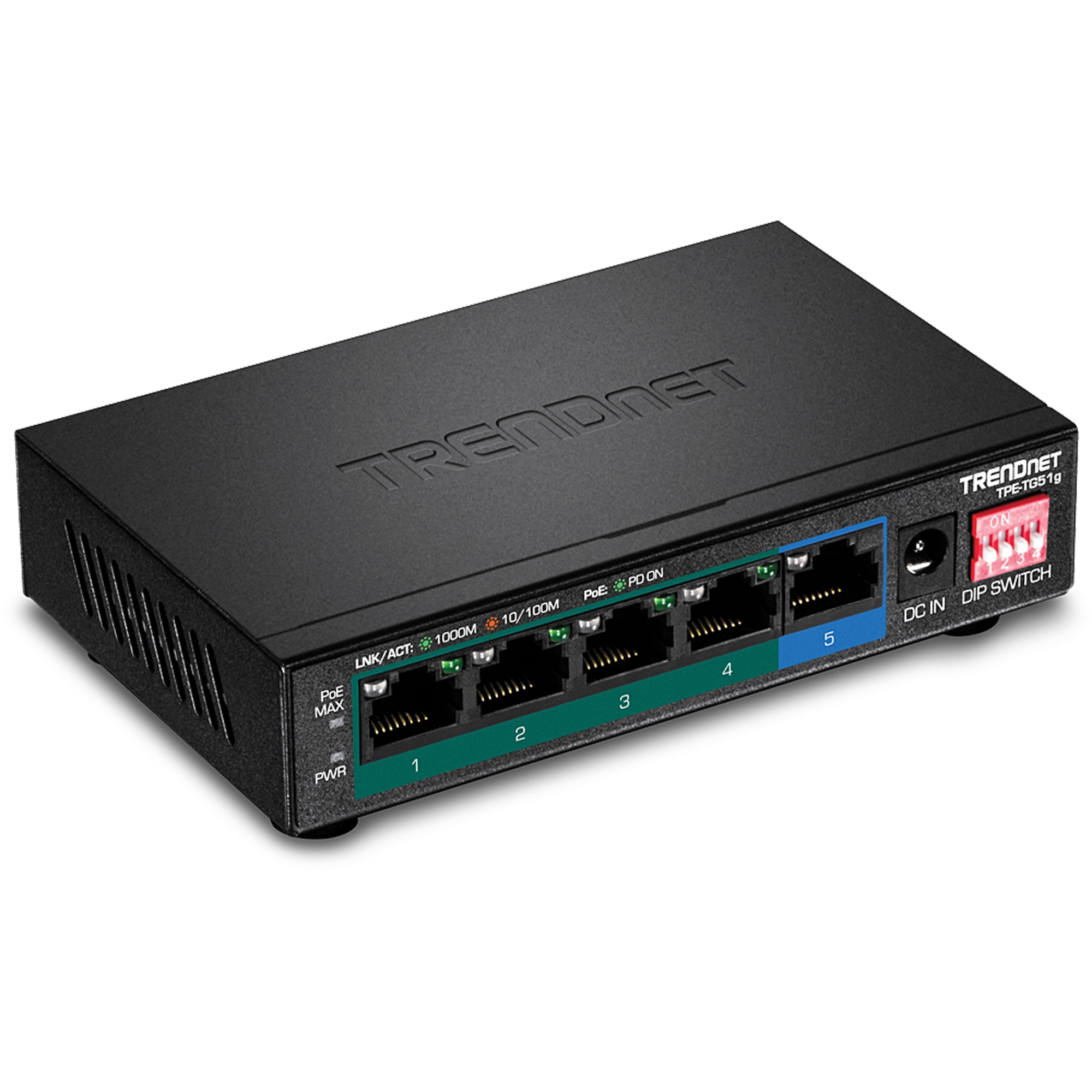

TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3p
- IEEE 802.3af
- IEEE 802.3at
|
|---|

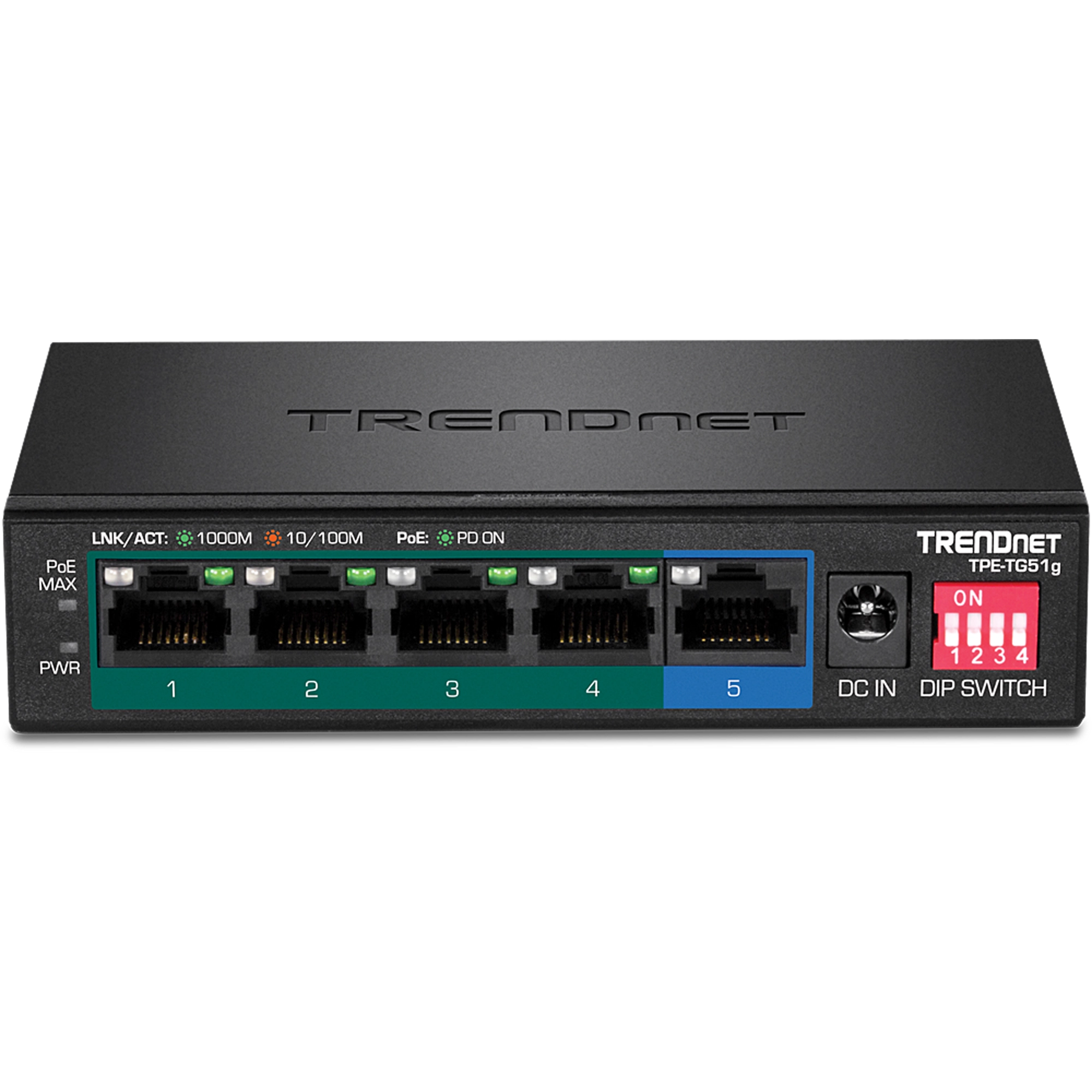

| Device Interface | - 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- DIP switch
- LED indicators
|
|---|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
|---|
| Performance | - Switch Fabric: 10Gbps
- RAM Buffer: 128KB
- MAC Address Table: 2K entries
- Jumbo Frames: 9KB
- Forwarding rate: 7.44Mpps (64-byte packet size)
|
|---|
| Special Features | - Long range PoE+ up to 200m at 10Mbps
- VLAN port isolation
- 802.1p Class of Service (CoS)
- Wall mountable
|
|---|
| DIP Switch | | Switch | Status | Function | | 1 | OFF | Ports 1 & 2: Default gigabit PoE+ | | ON | Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps | | 2 | OFF | Ports 3 & 4: Default gigabit PoE+ | | ON | Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps | | 3 | OFF | VLAN port isolation disabled | | ON | VLAN port isolation on ports 1-4 | | 4 | OFF | QoS disabled | | ON | QoS Enabled: Video & Voice – High Priority |
|
|---|
| Power | - Input: 100 – 240 V AC, 50/60Hz, 2.5A
- Output: 54V DC, 1.3A external power adapter
- Max. consumption: 64.3W
|
|---|
| PoE | - PoE budget: 60W
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
|
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions | - 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
|
|---|
| Weight | |
|---|
| Certifications | |
|---|
| Warranty | |
|---|

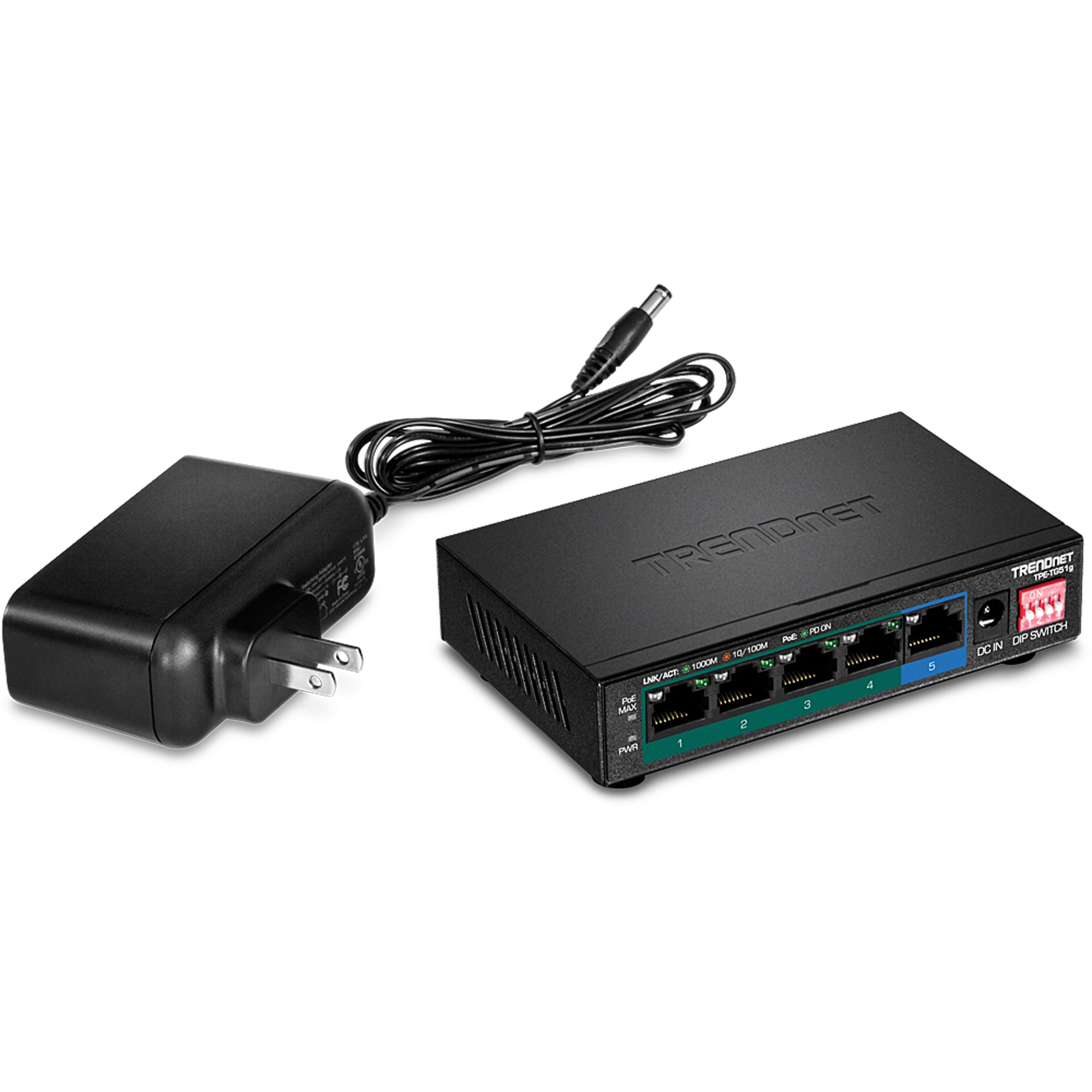

PACKAGE CONTENTS |
- TPE-TG51g
- Quick Installation Guide
- Power adapter (55V DC, 1.3A)
|
