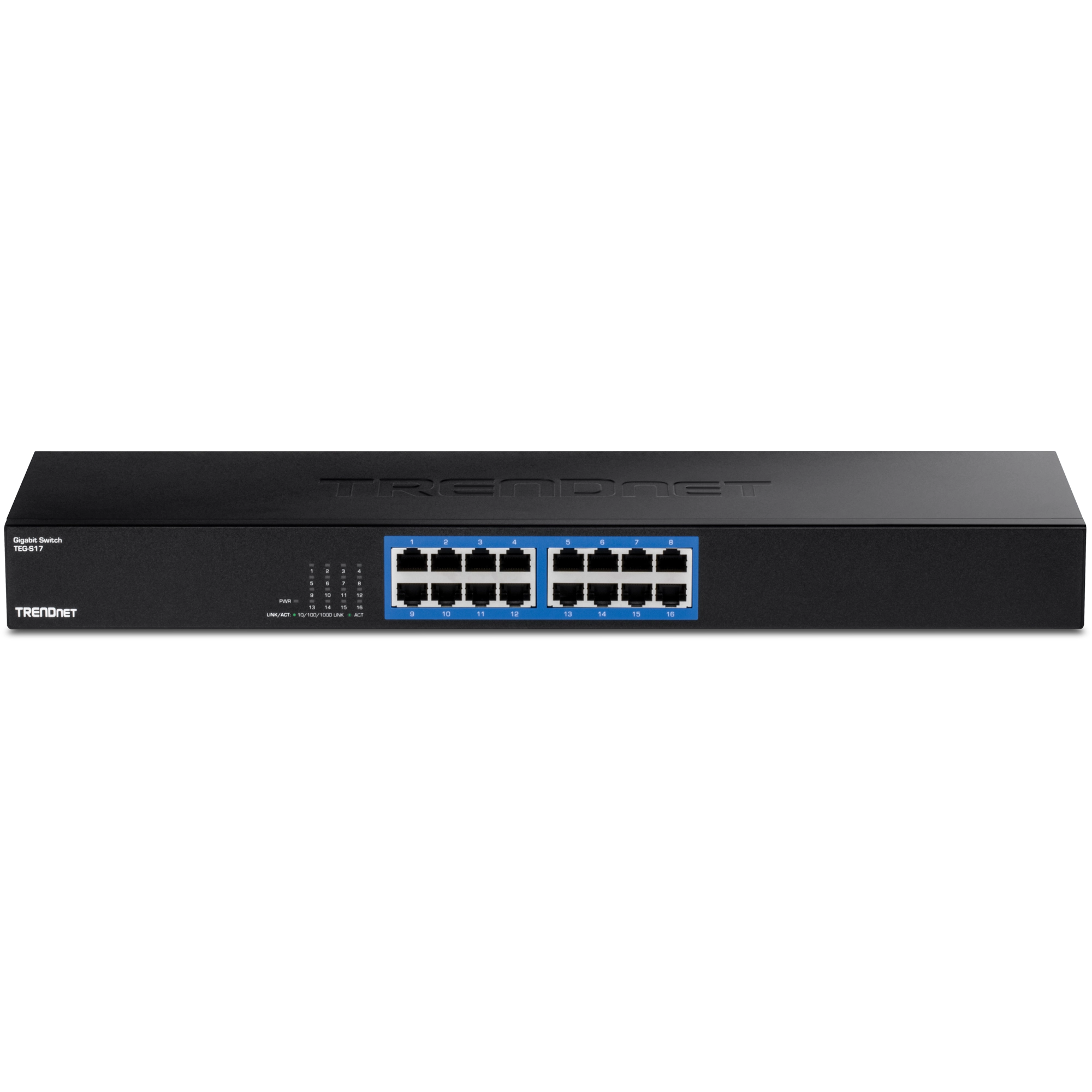

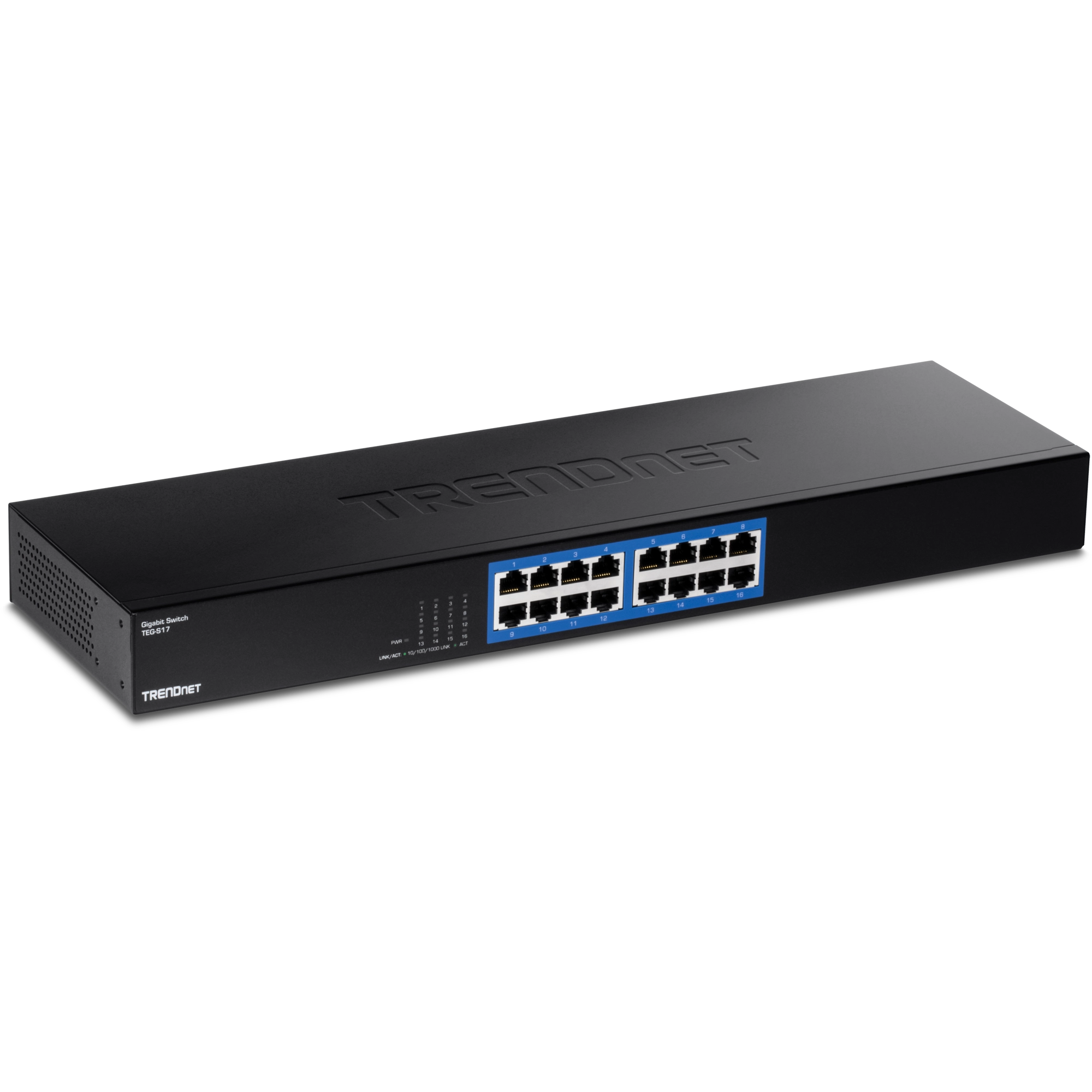

The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
|
|---|
| Device Interface | - 16x Gigabit ports
- LED indicators
|
|---|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
|---|
| Performance | - Switching Capacity: 32Gbps
- RAM Buffer: 512KB
- MAC Address Table: 8K entries
- Forwarding Rate: 23.8Mpps (64-byte packet size)
- Jumbo Frames: 9KB
|
|---|
| Special Features | |
|---|

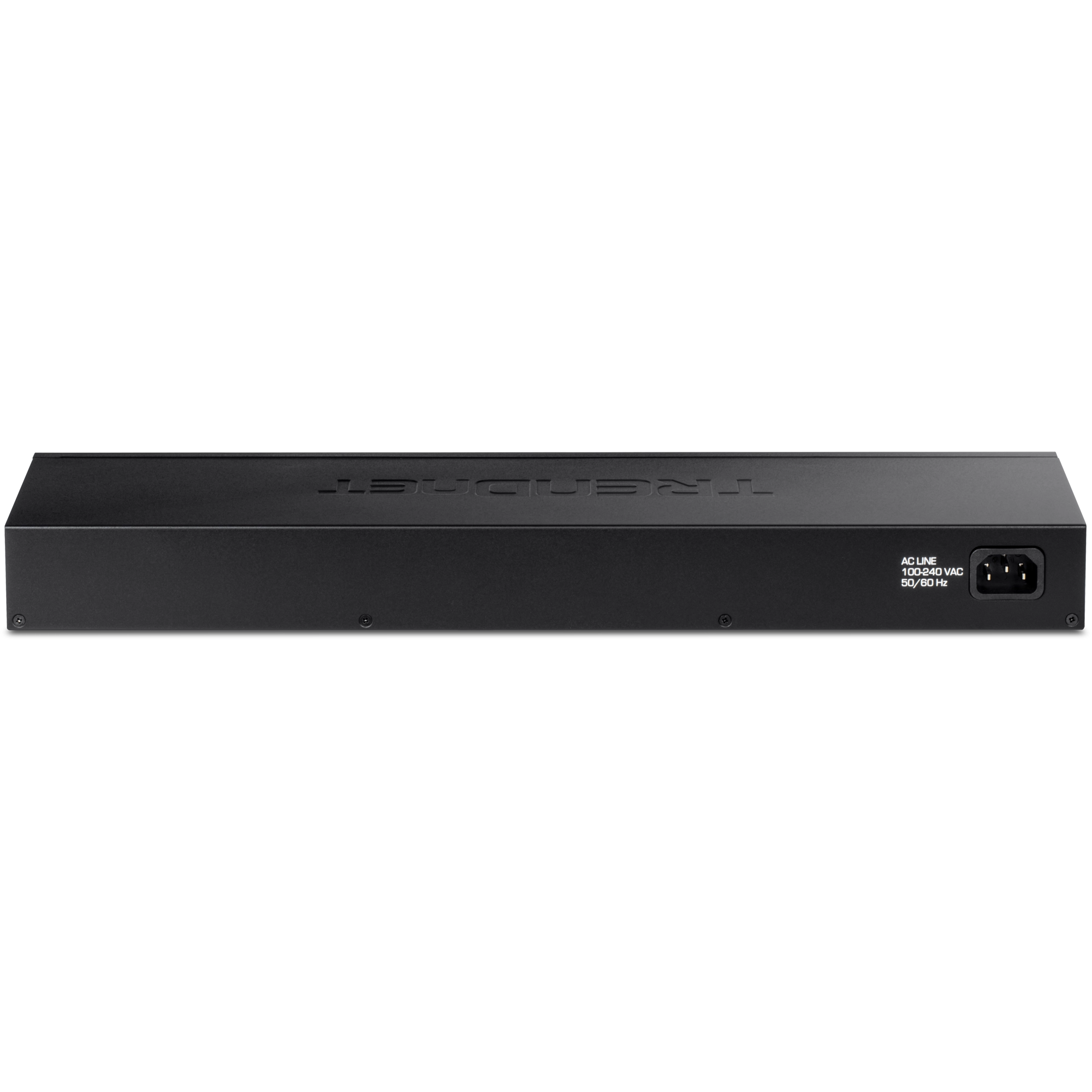

| Power | - Internal power supply: 100 – 240V AC, 50/60 Hz, 0.2A
- Max. Consumption: 9.19W
|
|---|
| Fan/Acoustics | |
|---|
| MTBF | |
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions (L x W x H) | - 435 x 130 x 43mm (17.12 x 5.11 x 1.69 in.)
|
|---|
| Weight | |
|---|
| Certifications | |
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TEG-S17
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
|
