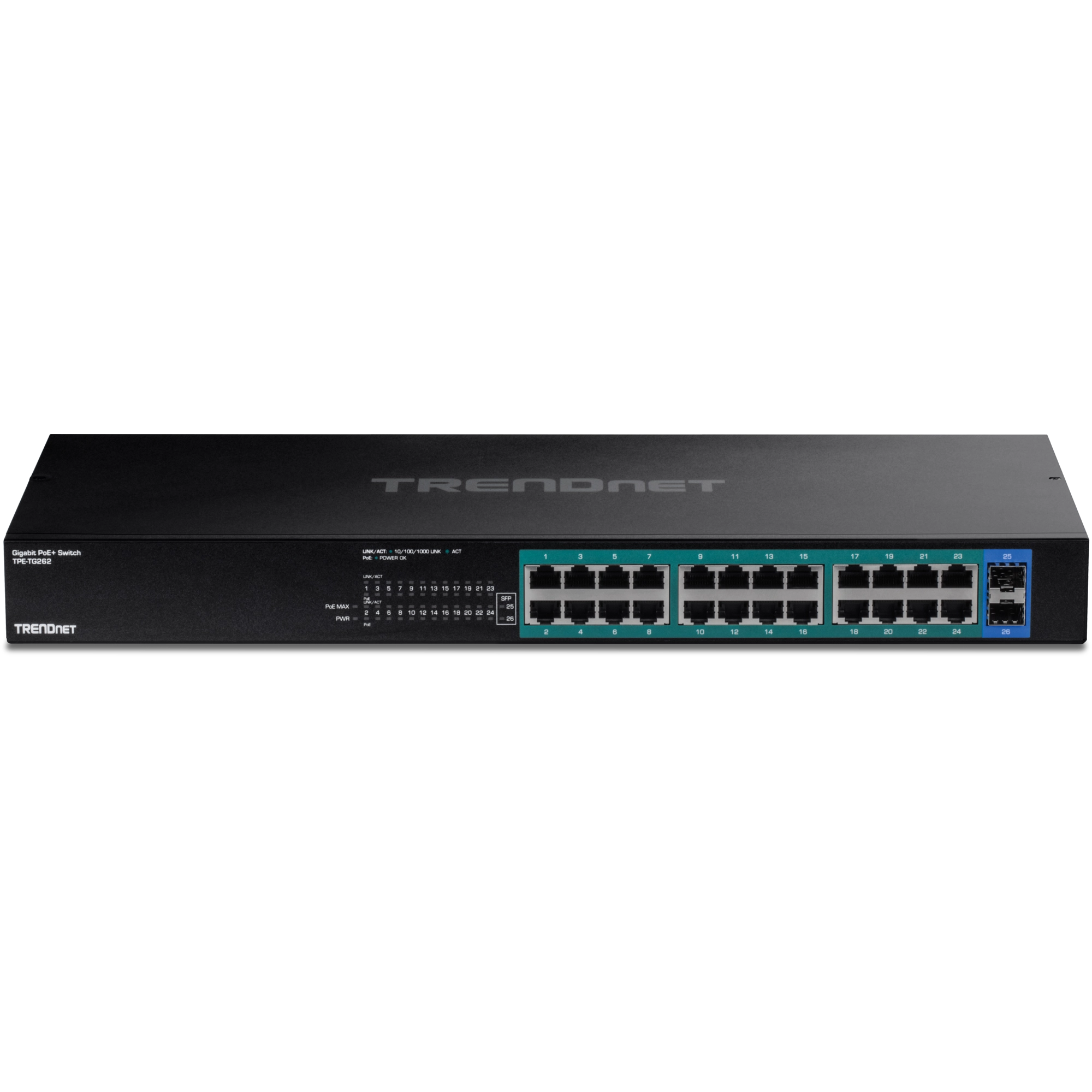

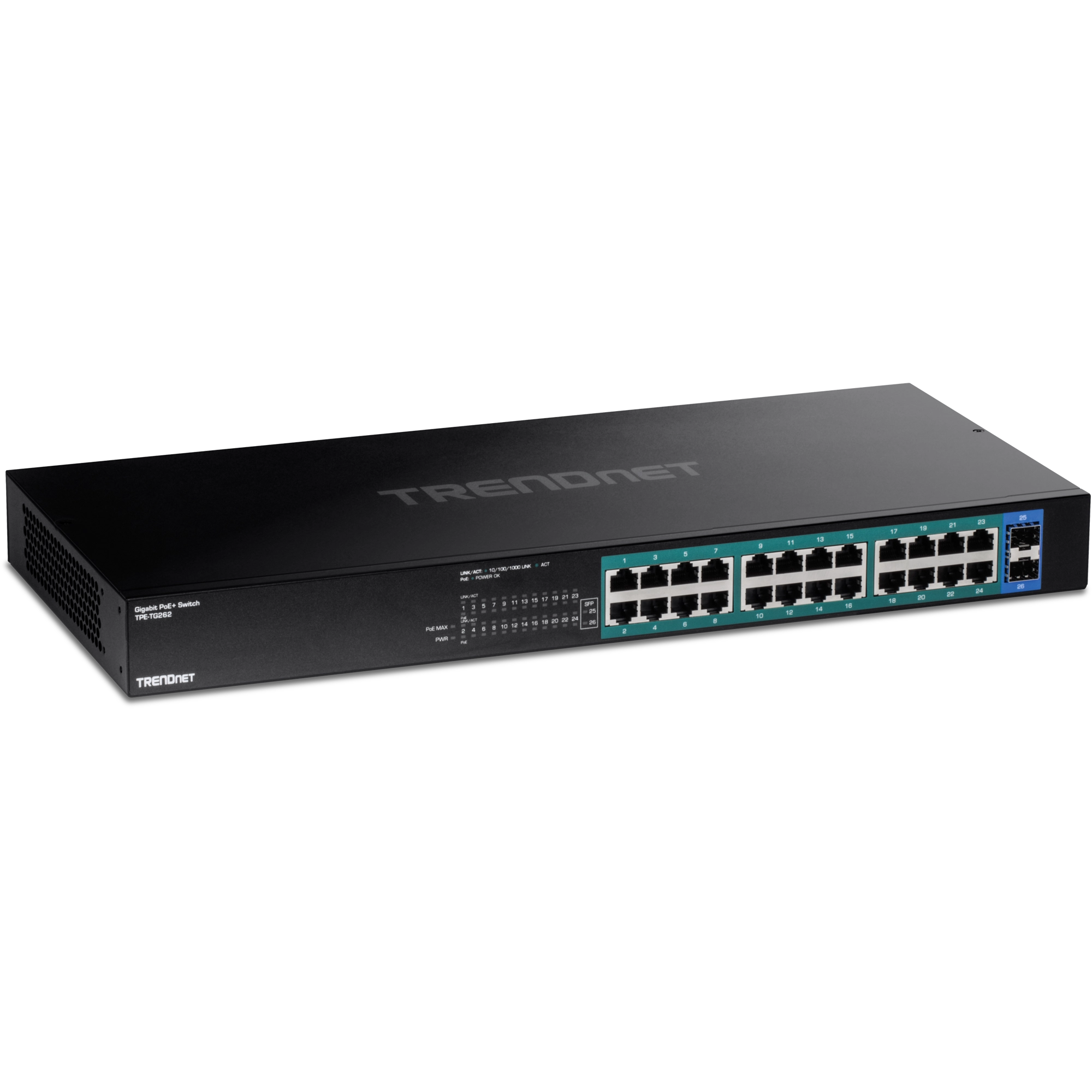

TRENDnet TPE-TG262 26-Port Gigabit PoE+ Switch

In Stock (10 items)
৳45,000.00 ৳44,500.00

  • 24 x Gigabit PoE+ ports (up to 30W per port)
  • 2 x Gigabit SFP Slots
  • 380W PoE power budget
  • 52Gbps switching capacity
  • NDAA / TAA compliant
  • Origin USA, Made in Taiwan
Read more

Brand: TRENDnet
Categories: Switchs / PoE / TrendNet
SKU: #I1D3jkhg4d

TRENDnet’s Unmanaged Gigabit PoE+ Switches provide high-bandwidth performance, ease of use, and reliability. These IEEE 802.3at compliant switches feature a sturdy 1U 19” rack-mountable metal housing with mounting brackets included. These gigabit PoE+ switches also offer SFP slots for long-distance fiber network applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged gigabit PoE+ switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these gigabit PoE+ switches.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 24 x Gigabit PoE+ ports
  • 2 x Gigabit SFP slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • SFP: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 52Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 35.7Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power

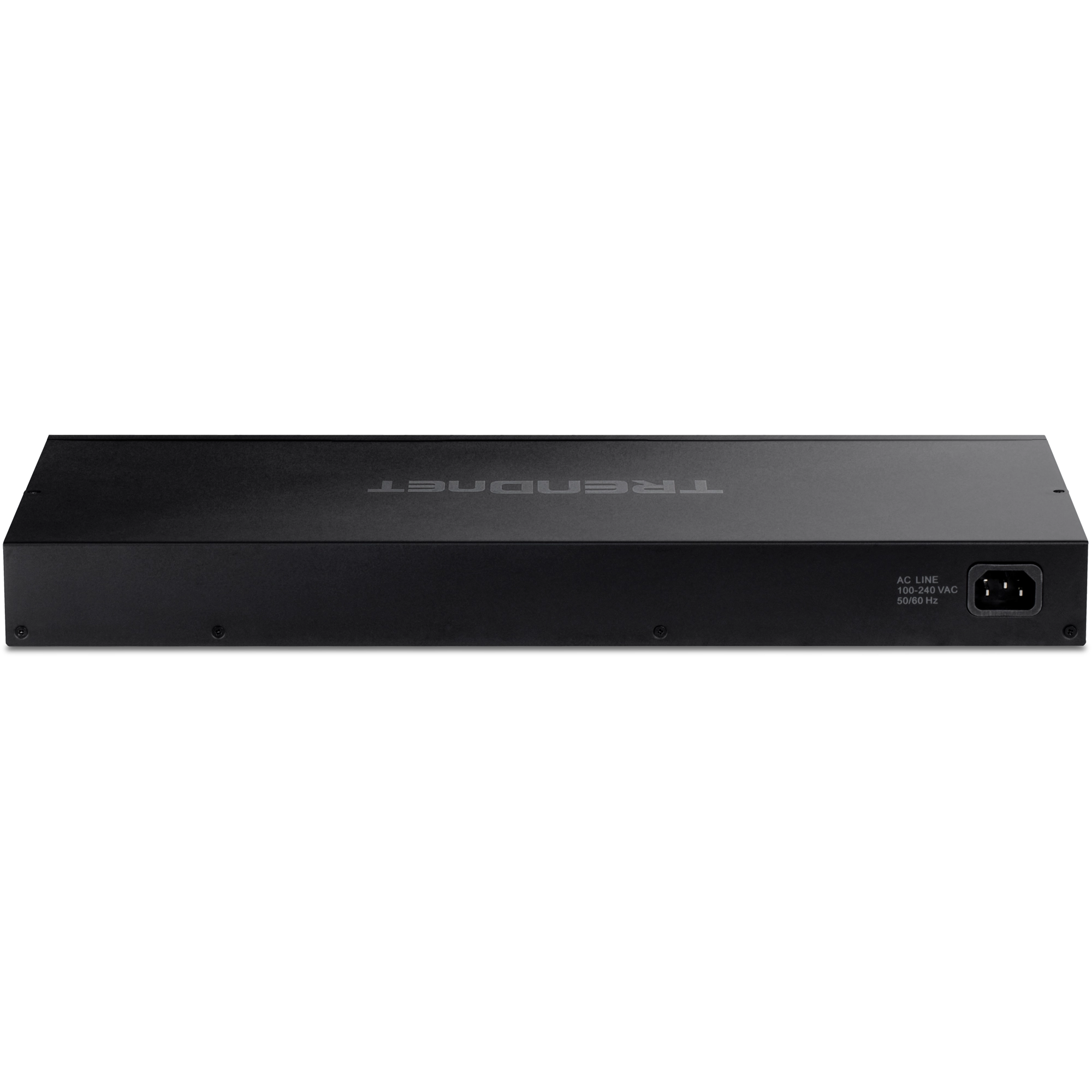

  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 40W (no PD)
PoE
  • PoE budget: 380W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
Fan/Acoustics
  • Quantity: 2
  • Max. noise Level: 30dB
MTBF
  • 480,878 hours
Operating Temperature
  • 0° – 40° C (32° - 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 435 x 195 x 44mm (17.12 x 8.3 x 1.67 in.)
Weight
  • 3.04kg (6.7 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty
  • 2 year

PACKAGE CONTENTS

  • TPE-TG262
  • Quick Installation Guide
  • Rack mount kit
  • Power cord (1.5m/4.9 ft.)
