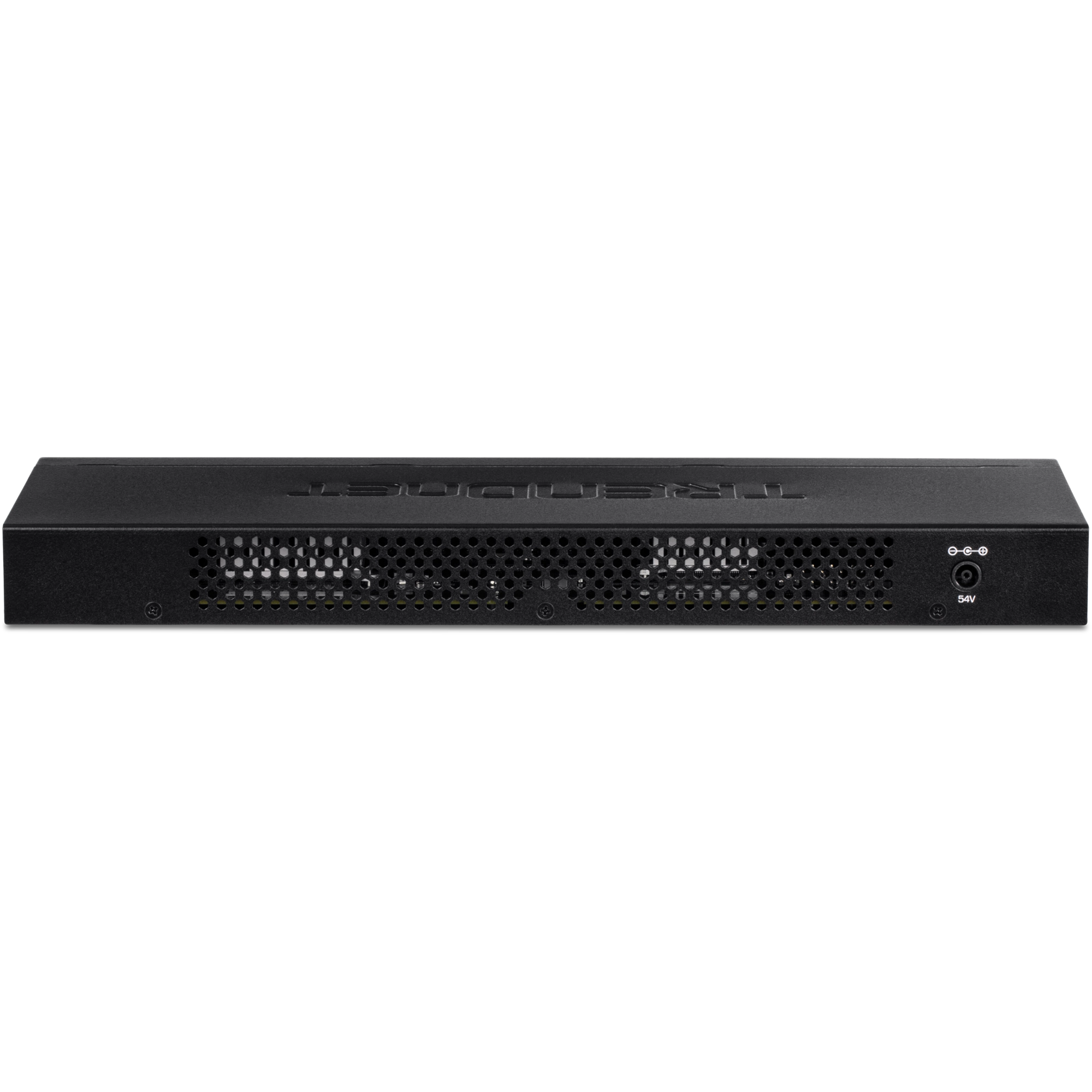

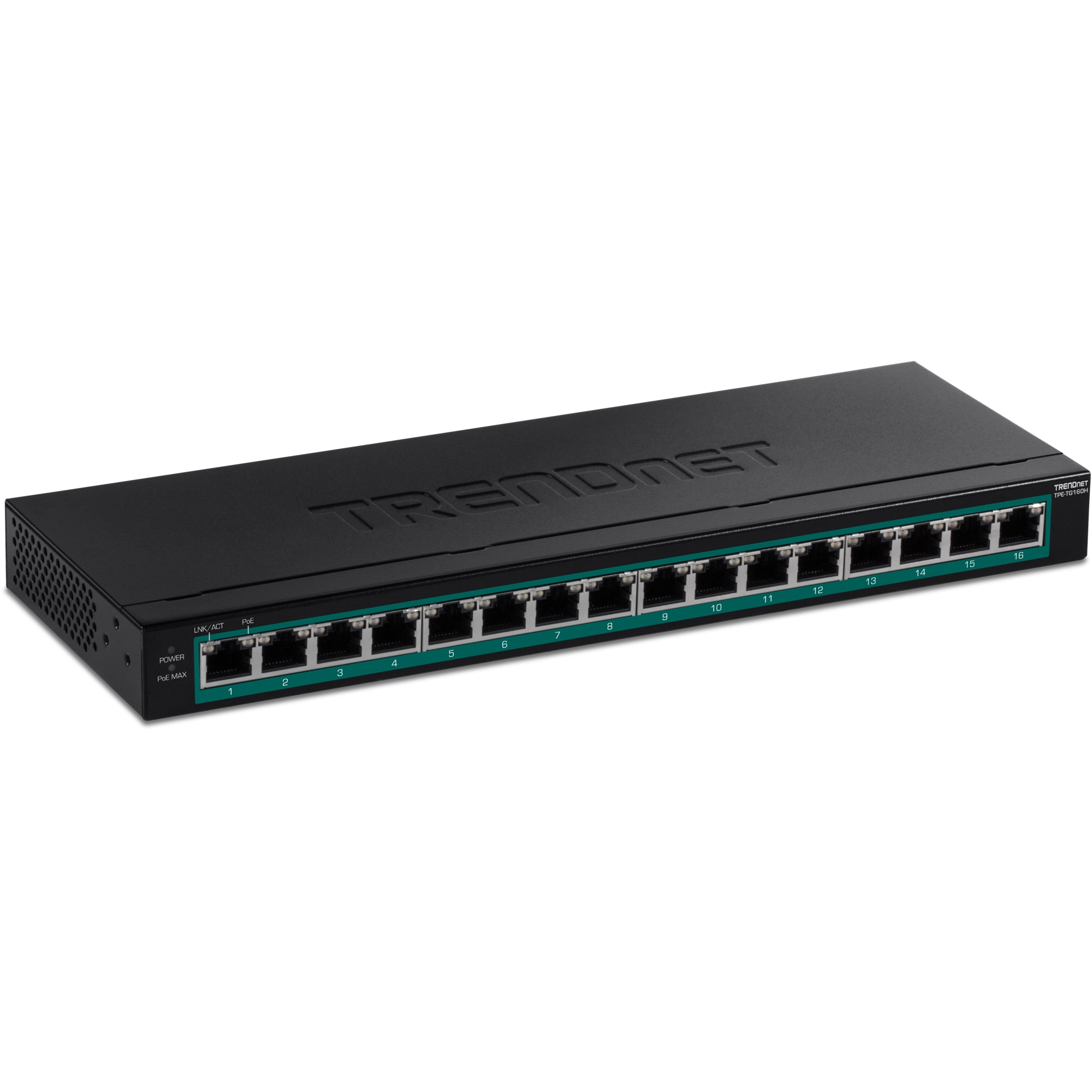

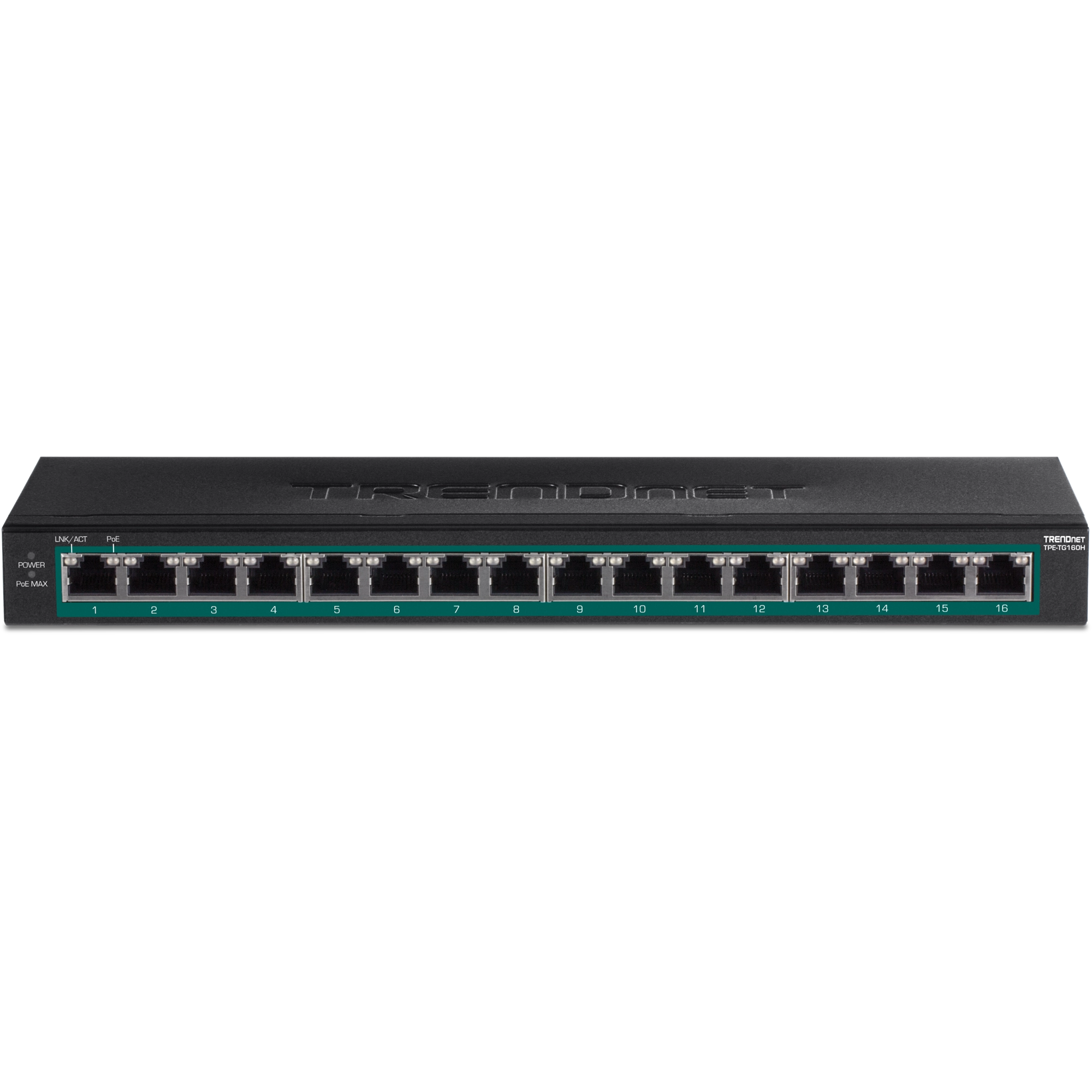

TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch

In Stock (10 items)
৳24,000.00 ৳23,500.00

  • 16 x Gigabit PoE+ ports
  • 32Gbps switching capacity
  • 123W PoE power budget
  • NDAA / TAA compliant
  • Origin USA, Made in Taiwan
Read more

Brand: TRENDnet
Categories: Switchs / PoE / TrendNet
Tags:
SKU: #X95dhW8wWP

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 32Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 23.8Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, DC 54V/2.78A
  • Max. consumption: 12.8W (no PD)
PoE
  • PoE budget: 123W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 988,148 hours
Operating Temperature
  • 0° – 45° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TPE-TG160H
  • Quick Installation Guide
  • Rack mount kit
  • Power Adapter (54V, 2.78A)
