| Standards | - IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1v
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3ad
- IEEE 802.3z
|
|---|

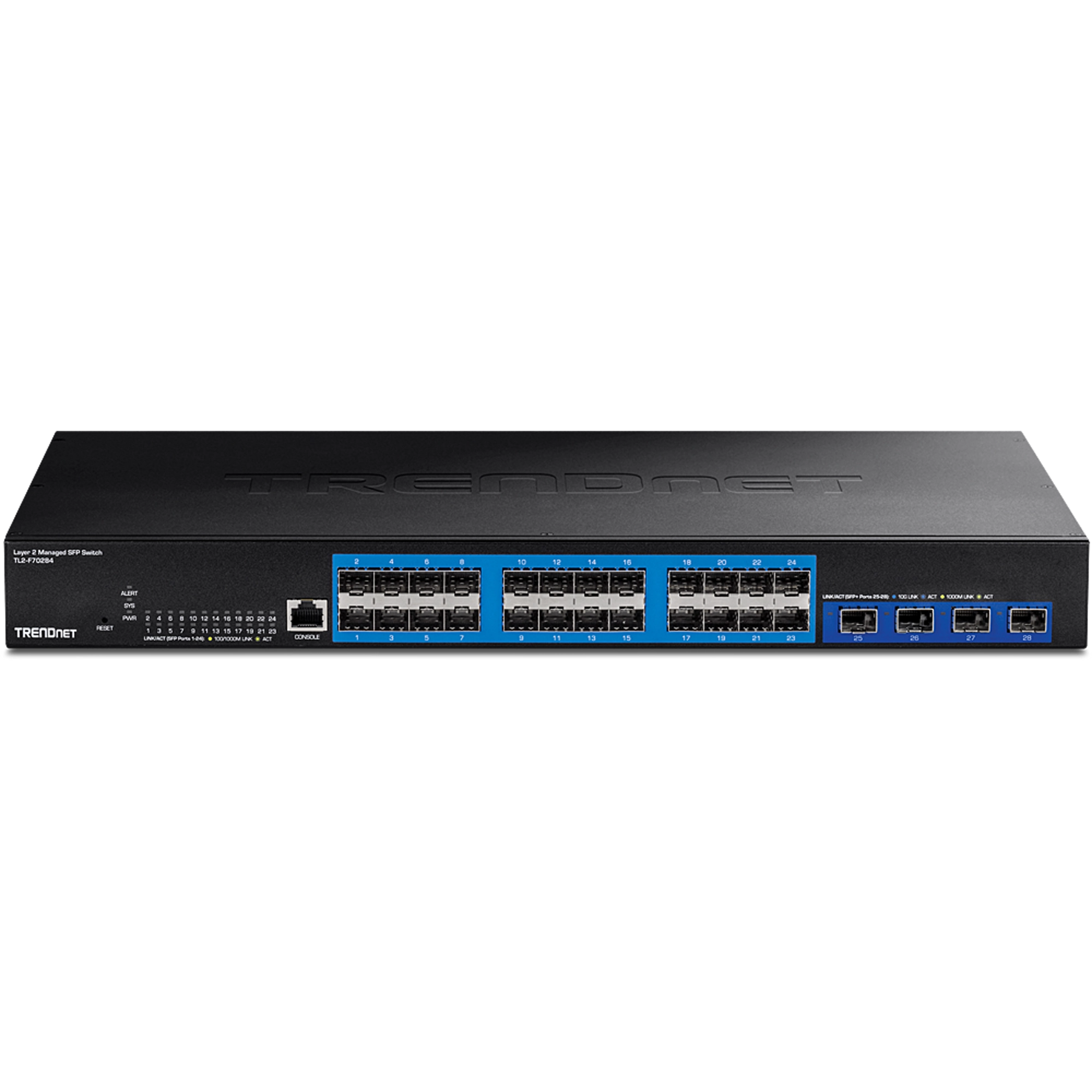

| Device Interface | - 24 x Gigabit SFP ports (100Mbps / 1Gbps)
- 4 x 10G SFP+ ports (1Gbps / 10Gbps)
- 1 x RJ-45 console port (out-of-band)
- LED indicators
- Reset button
|
|---|
| Data Transfer Rate | - Fast Ethernet SFP: 200Mbps (full duplex)
- Gigabit SFP: 2000Mbps (full duplex)
- 10G SFP+: 20Gbps (full duplex)
|
|---|
| Performance | - Switching capacity: 128Gbps
- RAM buffer: 2MB
- MAC address table: 32K entries
- Jumbo frames: 12KB
- Forwarding mode: store and forward
- Forwarding rate: 95.2Mpps (64-byte packet size)
|
|---|
| Management | - CLI (Console / Telnet / SSH)
- GUI (HTTP / HTTPS)
- IPv4/IPv6
- DNS
- TFTP/HTTP firmware upgrade
- TFTP/HTTP backup and restore configuration
- SNMP v1, v2c, v3
- SNMP trap
- RMON groups 1/2/3/9
- LLDP
- ICMPv4/ICMPv6
- Trace Route IPv4/IPv6
- Simple Network time protocol (SNTP)
- Dual image (Active/Backup)
- SNTP
- System Log (Local/Download/Remote Syslog)
- MAC entries (Static/Dynamic)
- ARP entries (Static/Dynamic)
- IPv6 neighbor discovery entries (Static/Dynamic)
- Port mirror (One to one, many to one)
- Port statistics counter
- Loopback detection
- CPU/Memory Utilization
- Real-time port statistics
- Ping watchdog
- DDM (Digital Diagnostic Monitoring)
|
|---|
| MIB | - RMON MIB RFC 1757
- MIB II RFC 1213
- Ethernet Interface MIB RFC 1643
- Bridge MIB RFC 1493
- RFC1215 Generic Trap
|
|---|
| Spanning Tree | - Spanning tree protocol (STP)
- Rapid spanning tree protocol (RSTP)
- Multiple spanning tree protocol (MSTP)
|
|---|
| Link Aggregation | - Static link aggregation
- Dynamic LACP (Up to 8 groups)
|
|---|
| Quality of Service (QoS) | - Class of service (CoS)
- Differentiated Services Code Point (DSCP)
- Bandwidth control per port/rate limiting
- Queue scheduling: strict priority (SP), weighted round robin (WRR)
|
|---|
| Storm Control | - Broadcast (Min. limit: 64pps)
- Multicast (Min. limit: 64pps)
- Destination Lookup Failure (DLF) (Min. limit: 64pps)
|
|---|
| VLAN | - 802.1Q tagged VLAN
- GVRP (GARP VLAN Registration Protocol)
- Up to 256 VLAN groups, ID range 1-4094
- Protocol VLAN
- MAC VLAN
- Private VLAN
|
|---|
| L3 Features | - IPv4 / IPv6 static routing
- IPv4 interfaces: Up to 15
- IPv6 interfaces: Up to 15
- Routing table entries: IPv4: 32 max. / IPv6: 32 max.
- Default route entries: 1 (IPv4 / IPv6)
- ARP table (up to 512 entries)
- Inter-VLAN routing
|
|---|
| Multicast | - IGMP snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP/MLD fast leave and querier
- IGMP/MLD dynamic router port, and report suppression
- Multicast filtering
- Up to 256 multicast groups
|
|---|
| Access Control | - 802.1X authentication (Local, RADIUS IPv4/IPv6, TACACS+ IPv4/IPv6)
- 802.1X RADIUS/Guest VLAN assignment, MAC-based authentication
- DHCP snooping/binding
- Dynamic ARP inspection
- Port Security/MAC address learning restriction (Up to 256 entries per port)
- Denial of Service (DoS)
|
|---|

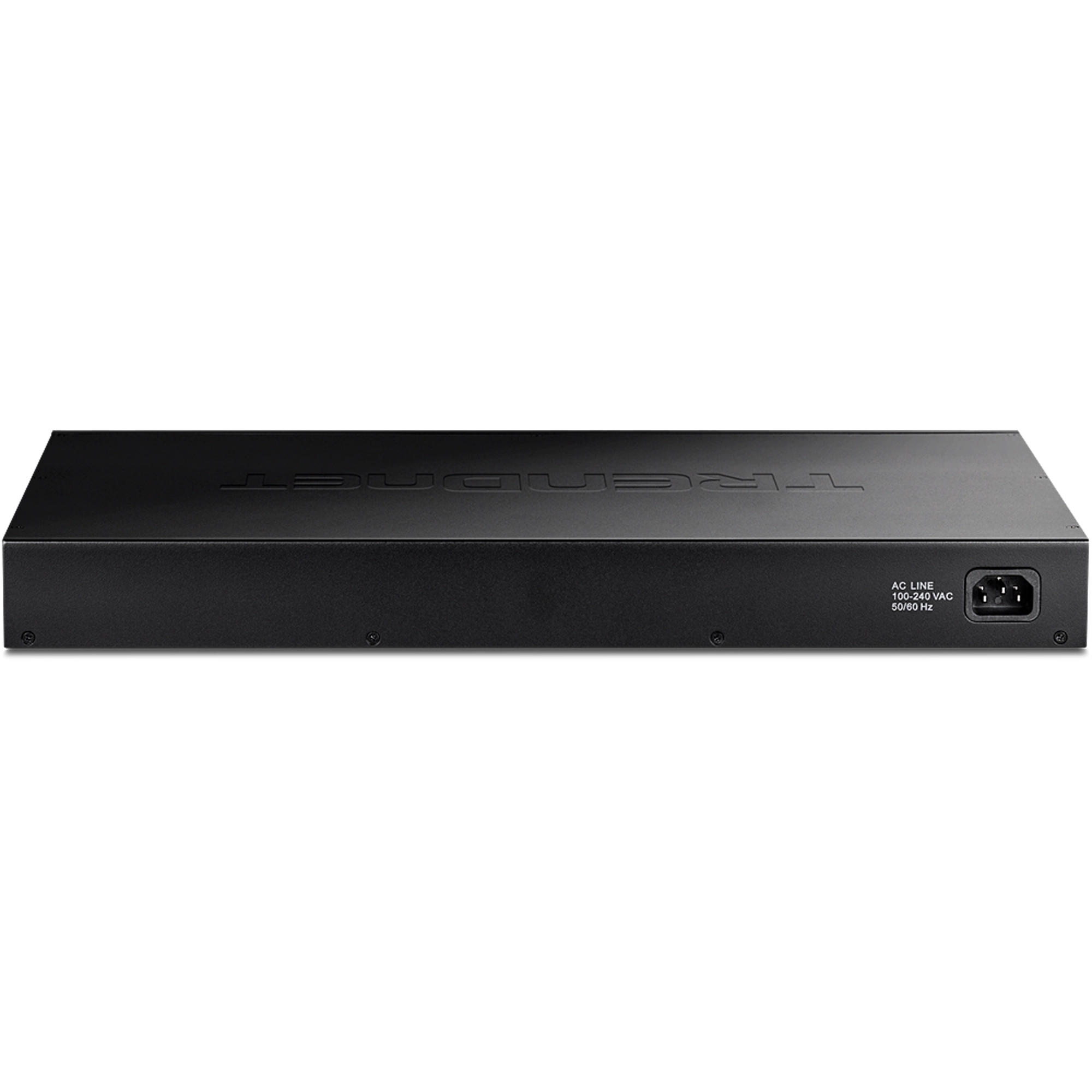

| Power | - Input: 100 – 240V AC, 50/60 Hz
- Max. consumption: 38.4W
|
|---|
| Fan/Acoustics | - Quantity: 3
- Smart Fans
- Noise Level: 52.9 dBa (max.)
|
|---|
| MTBF | |
|---|
| Operating Temperature | - 0° – 50° C (32° – 122° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions | - 440 x 270 x 44mm (17.3 x 10.63 x 1.73 in.)
- Rack mountable 1U height
|
|---|
| Weight | |
|---|
| Certifications | |
|---|
| Warranty | |
|---|
