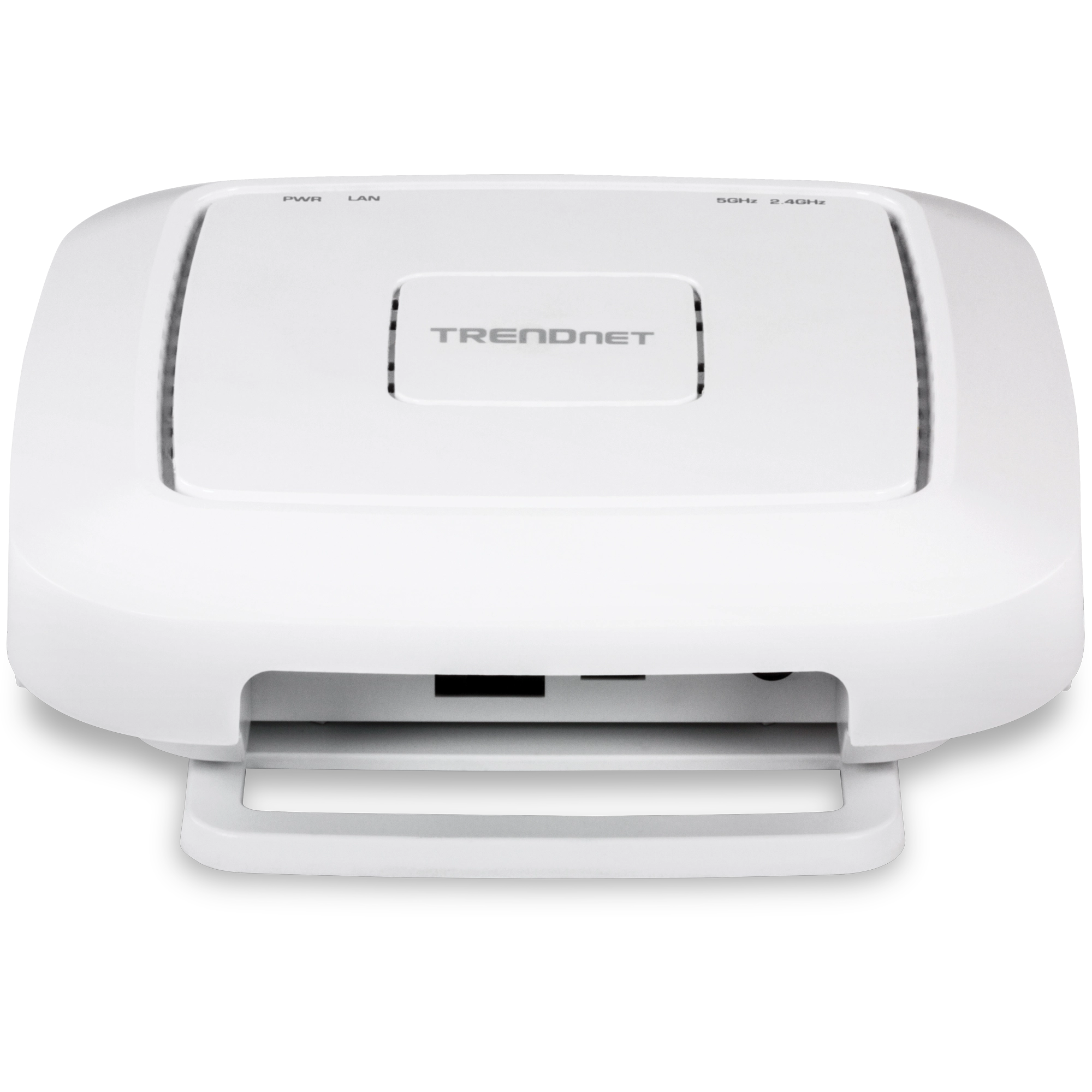

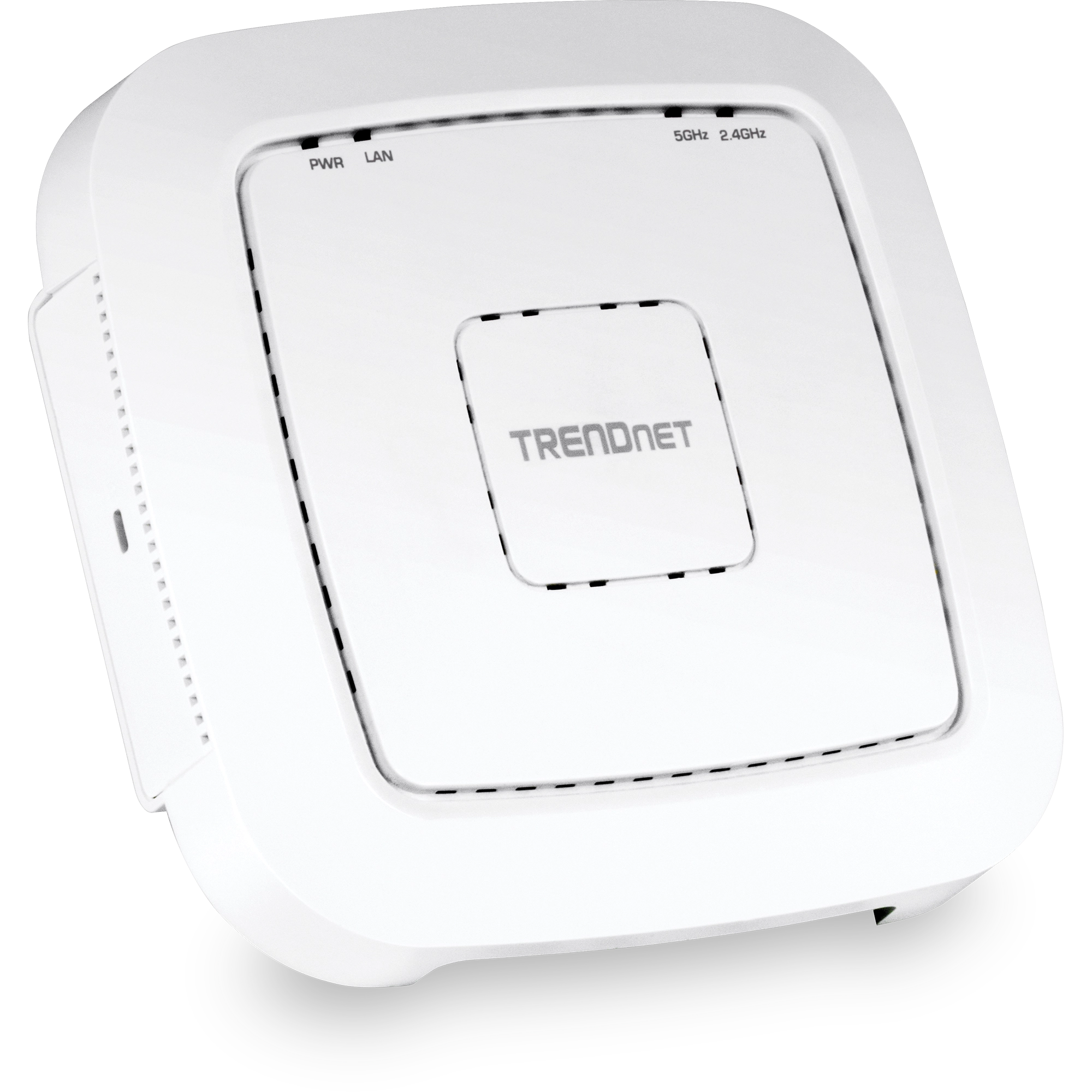

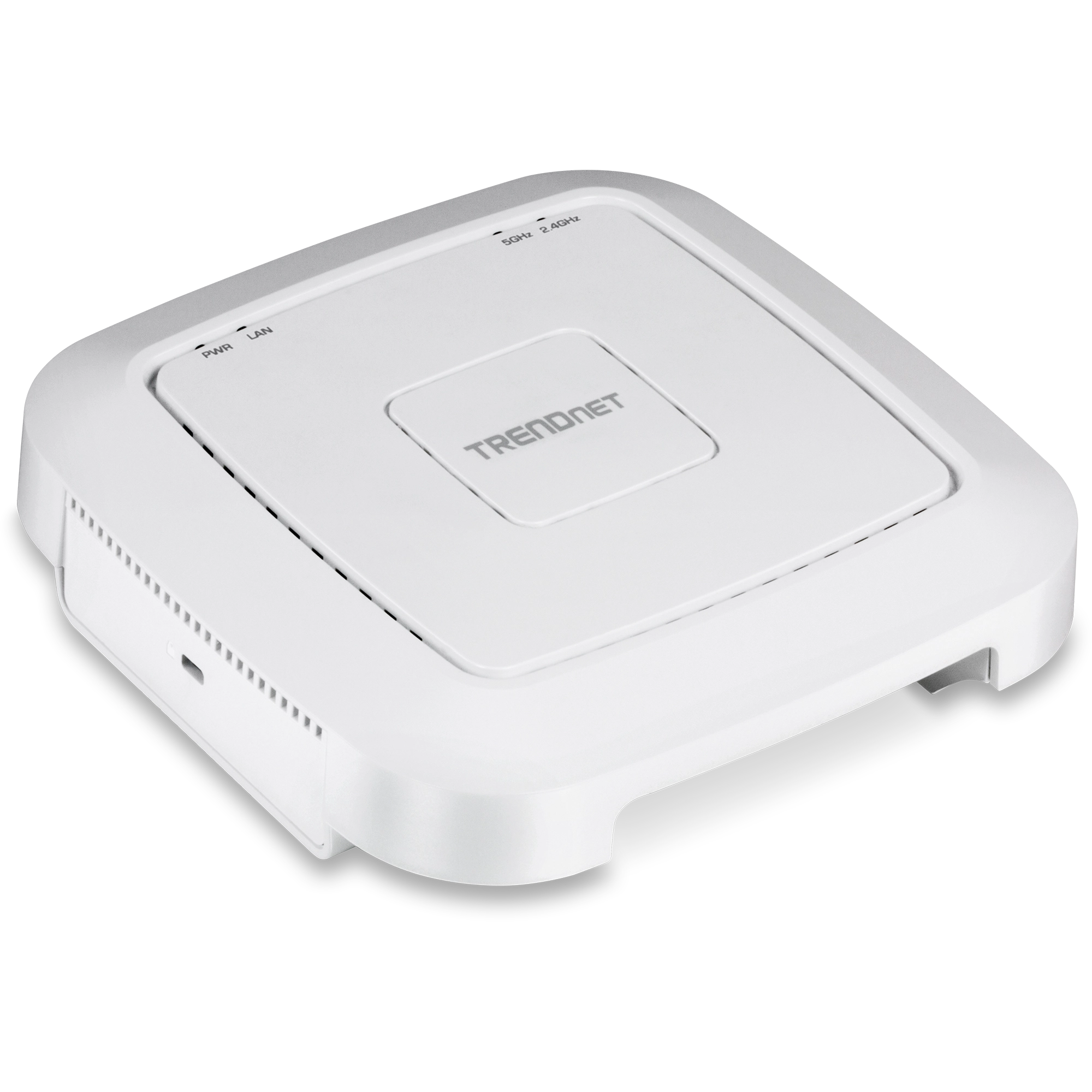

TRENDnet's high performance AC1200 Dual Band Indoor Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 300Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate with cable guard.
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (up to 300 Mbps)
- IEEE 802.11ac Wave 2 (up to 867 Mbps)
|
|---|

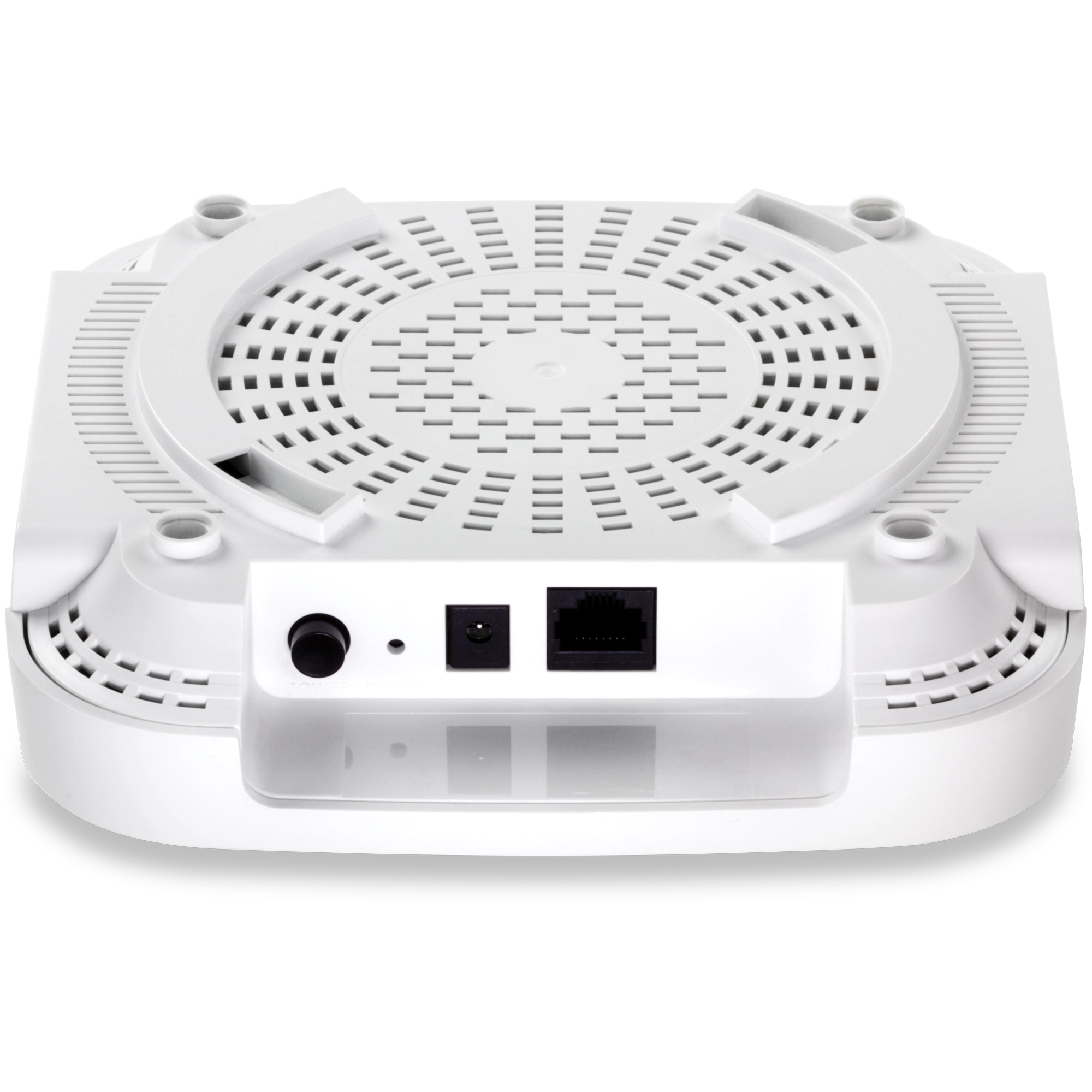

| Hardware Interface | - 1 x PoE Gigabit LAN port
- Power port (optional non-PoE installation)
- LED indicators
- Mounting plate and cable guard
- On/Off power button
- Reset button
|
|---|
| Features | - 802.11ac MU-MIMO Wave 2 support
- IP30 rated housing (with mounting plate and cable guard installed)
- Concurrent dual band
- Band steering
- WiFi traffic shaping
- 802.1Q VLAN assignment per SSID
- IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
- Multi-Language interface, English, French, Spanish, German, Russian
- LEDs on/off
- Captive Portal (external Coovachilli server authentication)
- Internal Captive Portal (Local user account authentication and customizable portal page)
- 802.11k intelligent radio resource management
- RSSI Threshold (client signal strength and connectivity control)
- Airtime Fairness
|
|---|
| Operation Modes | - Access Point
- Client Bridge
- WDS AP
- WDS Bridge
- WDS Station
- Repeater
|
|---|
| Management/Monitoring | - Web based management
- AP software utility
- SNMP v1/v3
- STP
- Event logging
- Ping test
- Traceroute
- CLI
|
|---|
| Access Control | - Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
- MAC filter
- Maximum client limit
|
|---|
| QoS | - WMM
- Bandwidth control per SSID or client
|
|---|
| SSID | - Up to 8 SSIDs per wireless band (16 total)
|
|---|
| Frequency | - 2.4GHz: 2.412 – 2.472GHz
- 5GHz: 5.180 – 5.8525GHz
|
|---|
| Wireless Channels | - 2.4GHz: FCC: 1–11, ETSI: 1 – 13
- 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
|
|---|
| Modulation | - DBPSK/DQPSK/CCK for DSSS technique
- BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
|
|---|
| Antenna Gain | - 2.4GHz: 2 x 3 dBi internal
- 5GHz: 2 x 4 dBi internal
|
|---|
| Wireless Output Power | - 802.11a: FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.)
- 802.11b: FCC: 23 dBm (max.) / CE: 10 dBm (max.) / IC: 23 dBm (max.)
- 802.11g: FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.)
- 802.11n (2.4 GHz): FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.)
- 802.11n (5 GHz): FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.)
- 802.11ac: FCC: 18 dBm (max.) / CE: 18 dBm (max.) / IC: 18 dBm (max.)
|
|---|
| Receiving Sensitivity | - 802.11a: -65 dBm (typical) @ 54 Mbps
- 802.11b: -83 dBm (typical) @ 11 Mbps
- 802.11g: -65 dBm (typical) @ 54 Mbps
- 802.11n (2.4 GHz): -64 dBm (typical) @ 300 Mbps
- 802.11n (5 GHz): -61 dBm (typical) @ 300 Mbps
- 802.11ac: -51 dBm (typical) @ 867 Mbps
|
|---|
| Power | - IEEE 802.3af Type 1 PoE PD Class 3
- Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (optional)
- Max. consumption: 8W
|
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Certifications | |
|---|
| Dimensions | - 163 x 165 x 44mm (6.4 x 6.5 x 1.7 in.)
|
|---|
| Weight | |
|---|
| Warranty: | |
|---|
PACKAGE CONTENTS |
- TEW-821DAP
- Network cable (1.5m/5 ft.)
- Quick Installation Guide
- Power adapter (12V DC, 1A)
- Mounting plate and cable guard
|
